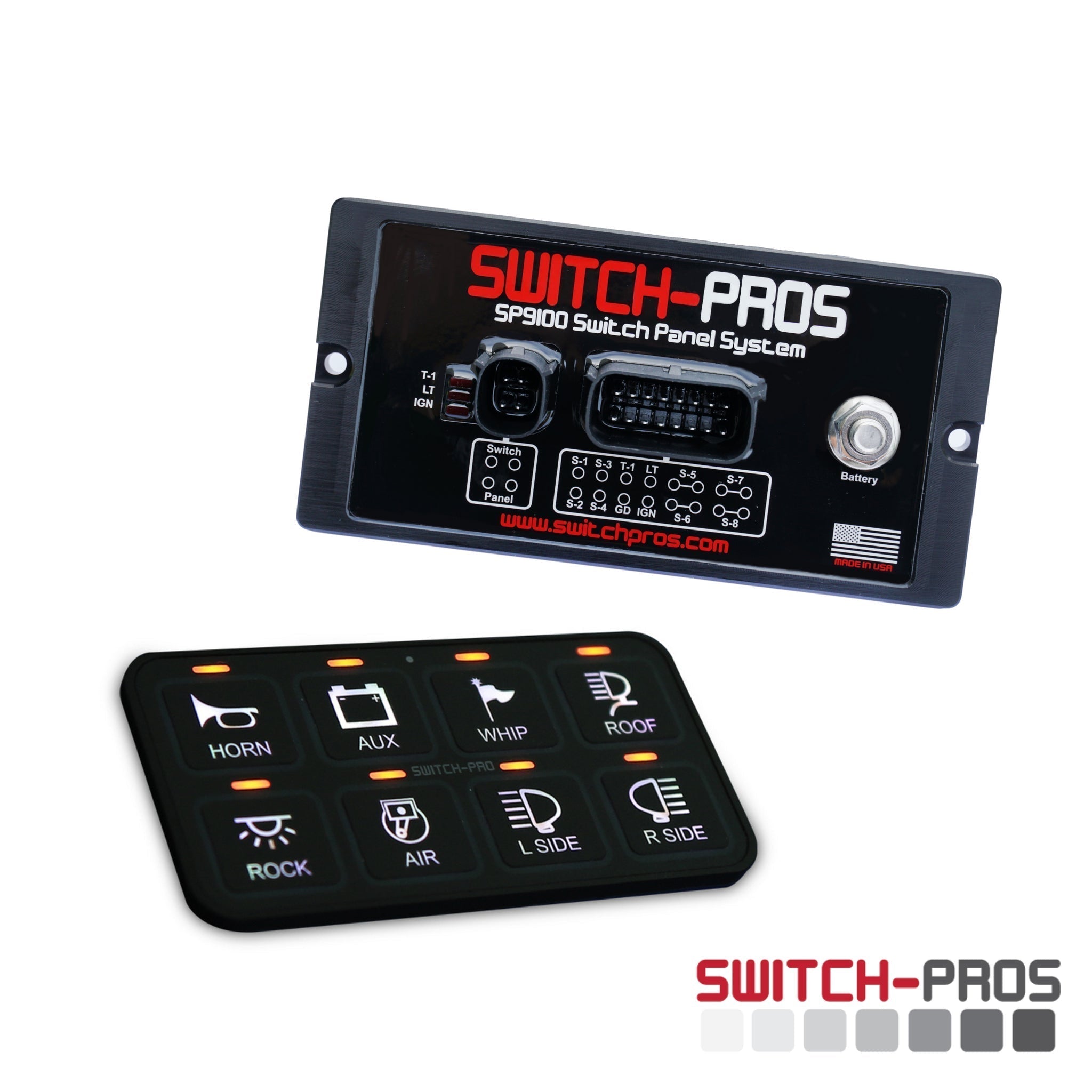

Switch Pros 8 Switch Programmable Switch Panel Power System
The Switch-Pros SP9100 8-Switch Panel Power System is the smartest, most convenient, and compact way to control...
- $659.00
$659.00- $659.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$659.00
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on select products
The Switch-Pros SP9100 8-Switch Panel Power System is the smartest, most convenient, and compact way to control your vehicle's electrical circuits. No bulky relay box, no fuses or bulky relay box. Unlike other systems that use flickering LED indicators to tell you what's on and off, the Switch-Pros 8-Switch Panel Power System uses brilliant RGB backlighting to show your system status at a glance. And with a FREE Apple or Android App, you can program and control your system from anywhere!
-
All systems include:
- 125 User-selectable switch legends (not shown)
- Eight user-programmable switches
- Four 35A circuits and four 20A circuits
- Waterproof, Solid State 125A Power Module
- RGB Backlighting provides unlimited color options, using Color Picker on App
- Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
- Switches can be programmed for:
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Memory Function
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Automatic Power-Up upon vehicle start up
- Two External trigger inputs can each activate up to four outputs (Active High or Active Low)
- Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
- Sleep Mode for minimal power consumption
- Color Coded circuit wires
- LED Input Status Indicators for easy troubleshooting
- Time Delay Off function available for all circuits
- Splash proof switch panel with Polycarbonate overlay faceplate
- Program and control the system from switch panel pad or smart phone
- Bluetooth interface with FREE Apple or Android App
- Battery Voltage Readout on App screen
- No Fuses or Bulky Relay box
- Built-In Bluetooth Module
Switch Panel Specs:
- RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
- Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
- Orange LED switch indicators
- 100 User Selectable Legends
Power Module Specs:
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- 125A maximum rating
- Waterproof and Solid State
- 6”L x 3”W x .5”H (excluding connectors)
- LED Input Status Indicators for easy troubleshooting
- Underhood rated 125° to -40°C

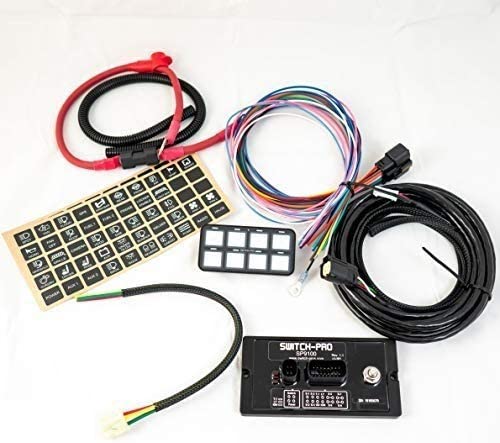

Kit Also Includes:
- 11’ of Communication Cable between Switch Panel and Power Module
- Color Coded Output wires
- Wire harness with Waterproof, sealed automotive grade connectors
- Power Cable with 125A inline fuse

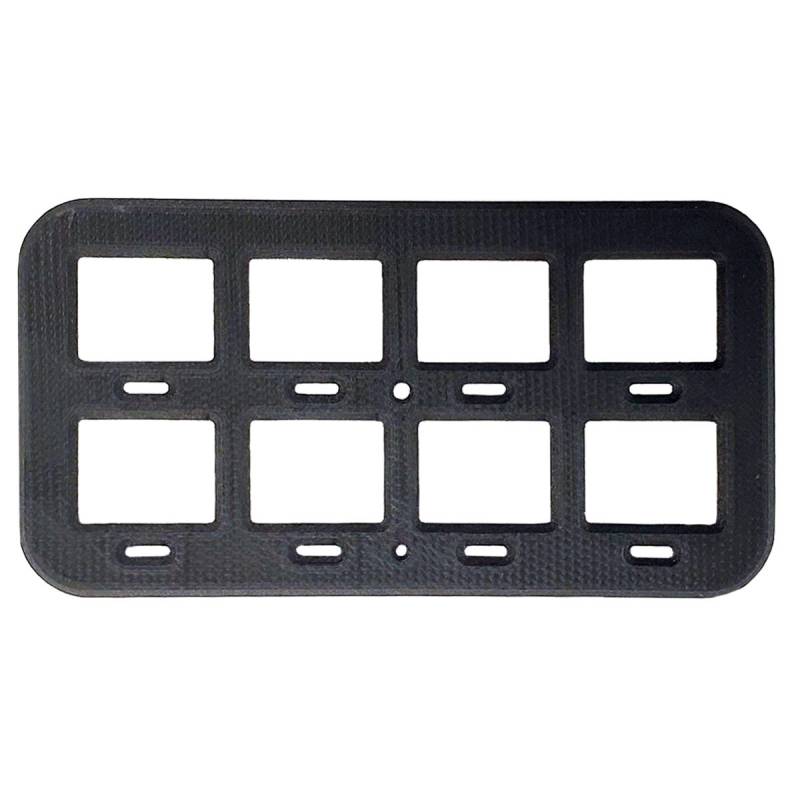

- Now includes Snap-on Bezel
