Switch Pros 12 Switch Programmable Switch Panel Power System
The RCR-Force 12 is the next generations of Switch Panel Power Systems from the engineers over at...
- $1,078.00
$1,078.00- $1,078.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$1,078.00
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on select products

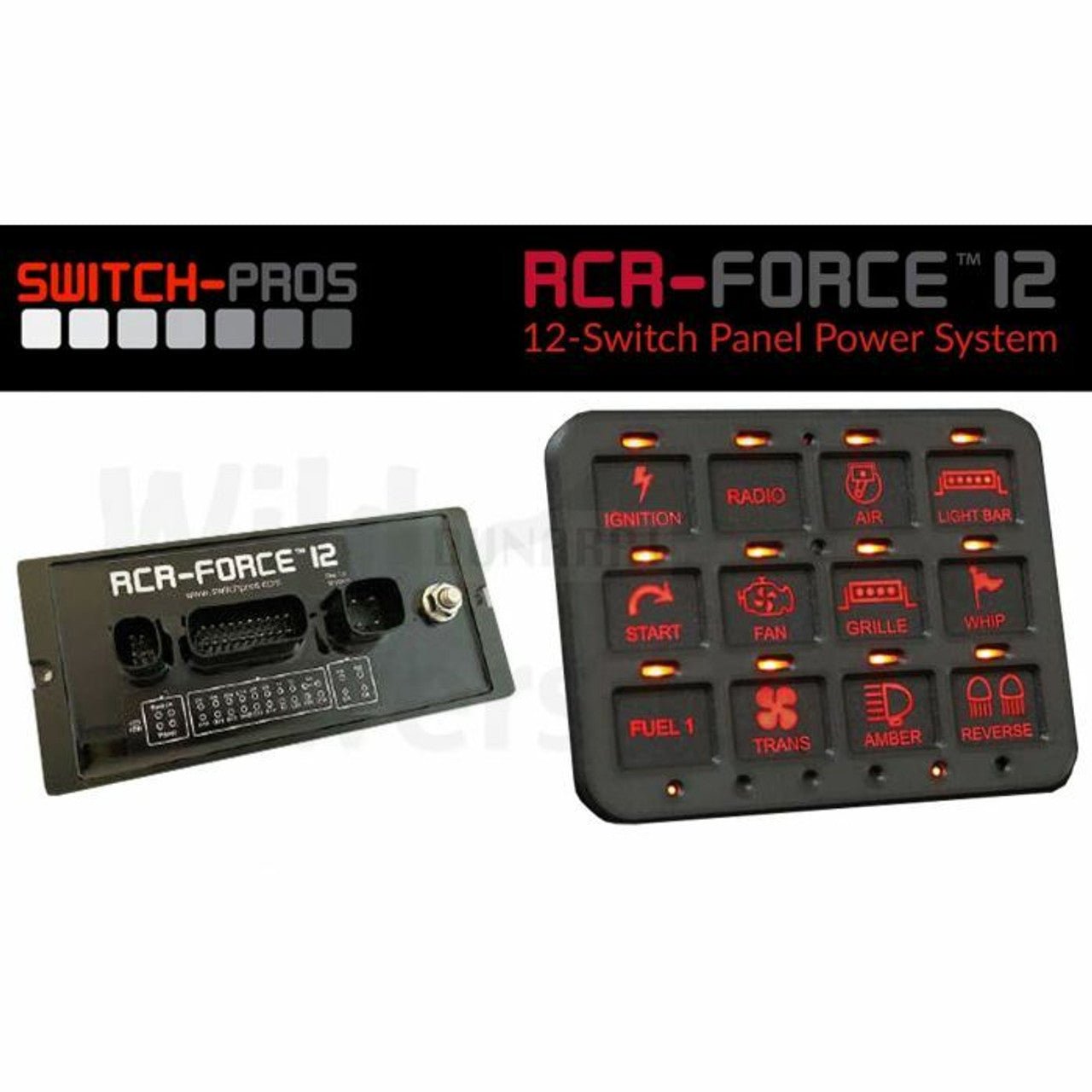

The RCR-Force 12 is the next generations of Switch Panel Power Systems from the engineers over at Switch Pros.
This RCR-Force 12 is one of the most versatile and easy to use waterproof solid state switch systems on the market today. Hook up and control your lighting and accessories from a single 12 switch panel with a complete system that is a easy to install and operate. Switch Pros RCR-Force 12 is rated at a powerful 150 amps and has a total of 17 output and 12 user programmable switches that offers any UTV, Tow Rig, or Off Road vehicle a ton of versatility when installed. Switch Pros went all in and stacked the RCR-Force 12 with tons of features like: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. Switch Pros has also included many programming functions like the ability to adjust the brightness of back lighting, RGB, time delay off, touch panel lock out, indicator LEDs and much more. And with a FREE Apple or Android App, you can program and control your system from anywhere!
-
FEATURES:
- 12 user-programmable switches
- RCR-TOUCH™ switch cover
- Waterproof, solid state power module
- 150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A
(High In-Rush circuits) - 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
- 4 rated @ 35A and 1 rated @ 30A
- Built-in Bluetooth module
- Program and operate accessories with phone or tablet
- System can be used to start vehicle
SWITCH PANEL SPECS:
- RCR-Touch™ cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
- Switch Panel enclosure measures
4” L x 3” W x .375” H - Splash proof with Polycarbonate overlay faceplate
- Pre-machined for factory- look installation
- RGB backlighting
- Orange LED switch indicators
- 6 Programmable LED Status indicators
POWER MODULE SPECS:
- 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
- 150A maximum rating
- 7”L x 3.5”W x .5”H (excluding connectors)
- Waterproof and Solid State
- Underhood rated 125° to -40°C
- LED Ignition Input Status Indicator
SWITCHES CAN BE PROGRAMMED FOR
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Every Master Switch can control up to 4 other switch outputs
- On-On-Off logic
- Touch Panel lockout
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Safety Lockout for specific switches
- Time Delay off
ADDITIONAL FEATURES:
- No bulky relay box
- RGB Backlighting with unlimited color options
- Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Sleep Mode for minimal power consumption
- Color coded output wires
- Daisy Chain up to 3 Switch Panels to One Power Module
- Free app for iOs and Android platforms
- Splash proof switch panel with Polycarbonate overlay faceplate
- LED Input Status Indicators for easy troubleshooting
- Battery Voltage Readout on App screen
KIT ALSO INCLUDES
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 150A inline Circuit protection
- 100 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- Color Coded Output wires
- Wire harness with waterproof, sealed automotive grade connectors
