AiM MXM Data Logging System - Configured for the Can Am Maverick R
AiM's MXm is the dash logger which provides all the info needed by racers: it samples and...
- $1,529.00
$0.00- $1,529.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$1,529.00
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on select products
AiM's MXm is the dash logger which provides all the info needed by racers: it samples and shows key info like speed, laptimes, RPM, gears, it has multiple math channels and much more.
Its strengths are the compactness, which makes MXm perfect to be fit into any kind of UTV, car and bike, and its plug-and-play usage: complete but simple, MXm is the perfect device for both Pro and Amateaur racers.
A wide range of data sources:
MXm samples data coming from your ECU, the internal GPS, 4 fully configurable analog inputs, 3 digital inputs (2 speed inputs + 1 coil RPM input) and predefined math channels.MXm features a 5 LED shift light array.
Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required. MXm also features two fully configurable RGB alarm LEDs: you can choose the conditions which turn them on/off, their color, select a solid alarm - or flashing one - and the flashing frequency.
MXm features two power outputs that can drain up to 15 A each. The two power outputs can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when
a certain event happens.
At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures. You can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.
We have already had the cable designed to connect to the the Maverick R's ECU from the MXm.
Included:

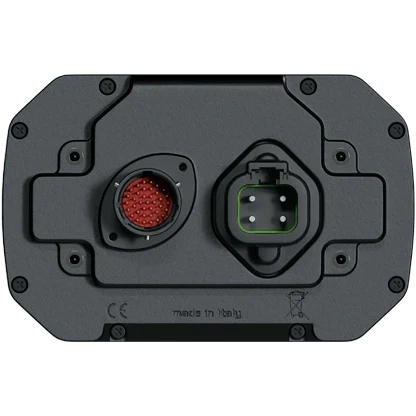

37 Pin Harness,DTP 06-4S 4 pin connector with pins
USB download cable
