ZXI 4x6" 2-Way Coaxial Speakers with Kevlar Cone | 60 Watts RMS 4-Ohm

DS18 ZXI-464 Glass Fiber Cone 4x6" 2-Way Coaxial Car Speaker 180 Watts 4-Ohm The ZXI series is the...
Vendor: DS18
SKU: ZXI-464
Availability: Out Of Stock
Product type: Car Audio : Speaker
$92.95
$92.95
Please hurry! Only 0 left in stock
Subtotal: $92.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

ZXI 4x6" 2-Way Coaxial Speakers with Kevlar Cone | 60 Watts RMS 4-Ohm

ZXI 4x6" 2-Way Coaxial Speakers with Kevlar Cone | 60 Watts RMS 4-Ohm

$92.95

ZXI 4x6" 2-Way Coaxial Speakers with Kevlar Cone | 60 Watts RMS 4-Ohm

$92.95

DS18 ZXI-464 Glass Fiber Cone 4x6" 2-Way Coaxial Car Speaker 180 Watts 4-Ohm

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-464 is 4x6 inch, 4 ohms coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.

Highlights

  • The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
  • 4x6" 2 - way 4 ohms speaker requiring 60w RMS and 180w Max power handling that gives amazing sound from low to extremely high volume.
  • 2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember
2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone2-way coaxial speakers with kevlar cone
Technical Details
Nominal Diameter 4x6”
Nominal Impedance 4 ohms
RMS Power Handling 60 Watts
MAX Power Handling 180 Watts
Sensitivity (1w/1m) 87dB
Frequency Response 80Hz-20KHz
Recommended HI Pass Crossover 100Hz
Speaker Type 2-Way
MOTOR
Voice Coil Diameter 1” / 25.5mm
Voice Coil Former Material KSV
Winding Material EISV
Cone Material Glass fiber
Surround Material Rubber
Basket Material Steel
Magnet Material Barium Ferrite
Magnet Weight 10.9 oz / 310g
TWEETER
Nominal Diameter 1" (25.4mm)
Voice Coil Diameter 0.8"(ø20.4mm)
Voice Coil Former Material KSV
Winding Material EISVM
Diaphragm Material PEI
Magnet Material Neodymium
Magnet Weight 0.3 oz / 8.5g
THIELE & SMALL PARAMETERS
Equivalent Volume 1.989L
Excursion (one way) 2.3mm
Free Air Resonance 77Hz
Mechanical Factor 5.97
Electrical Factor 1.15
Total Factor 0.97
Mechanical Mass 9.79g
Mechanical Compliance 232mm/N
BL Factor 4.44
Voice Coil Inductance 216mH
Cone Area 77.7cm2
DC Resistance 3.5 ohm
Mechanical Mass w/o air 9g

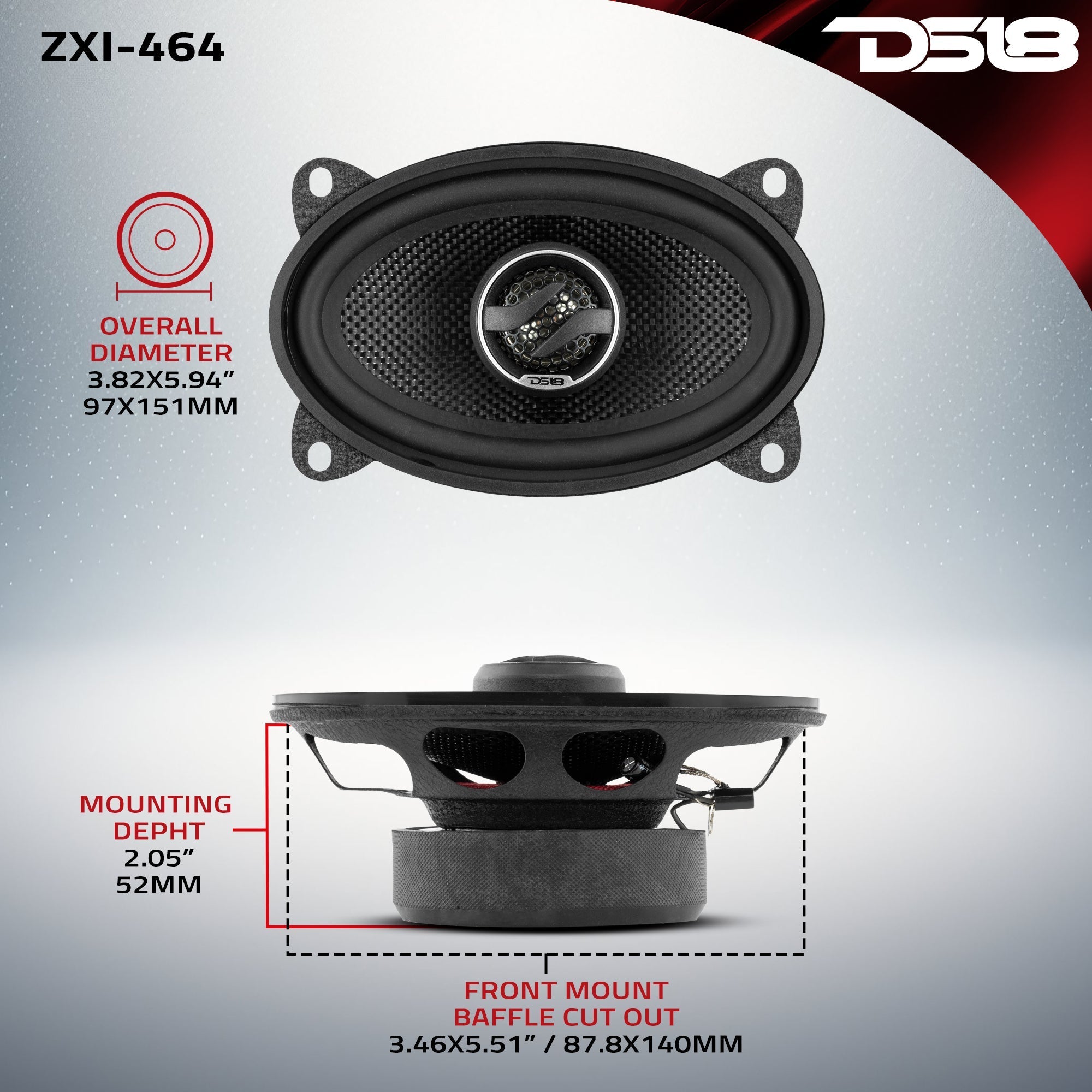

MEASUREMENTS
Overall Diameter 3.82x5.94"
Overall Depth 2.80” / 71mm
Front Mount Baffle Cutout 3.46x5.51” / 87.8x140mm
Mounting Depth 2.05” / 52mm
Motor Diameter 3.31” / 84mm
