ZR 1-Channel Class D Amplifier 2000 Watts Rms @ 1-Ohm

DS18 ZR2000.1D Class D 1-Channel Monoblock Amplifier 2000 Watts RMS-1 Ohm The ZR Series amps are sure...
Vendor: DS18
SKU: ZR2000.1D
Availability: Out Of Stock
Product type: Car Audio : Amplifier
$399.95
$399.95
Please hurry! Only 0 left in stock
Subtotal: $399.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

ZR 1-Channel Class D Amplifier 2000 Watts Rms @ 1-Ohm

ZR 1-Channel Class D Amplifier 2000 Watts Rms @ 1-Ohm

$399.95

ZR 1-Channel Class D Amplifier 2000 Watts Rms @ 1-Ohm

$399.95

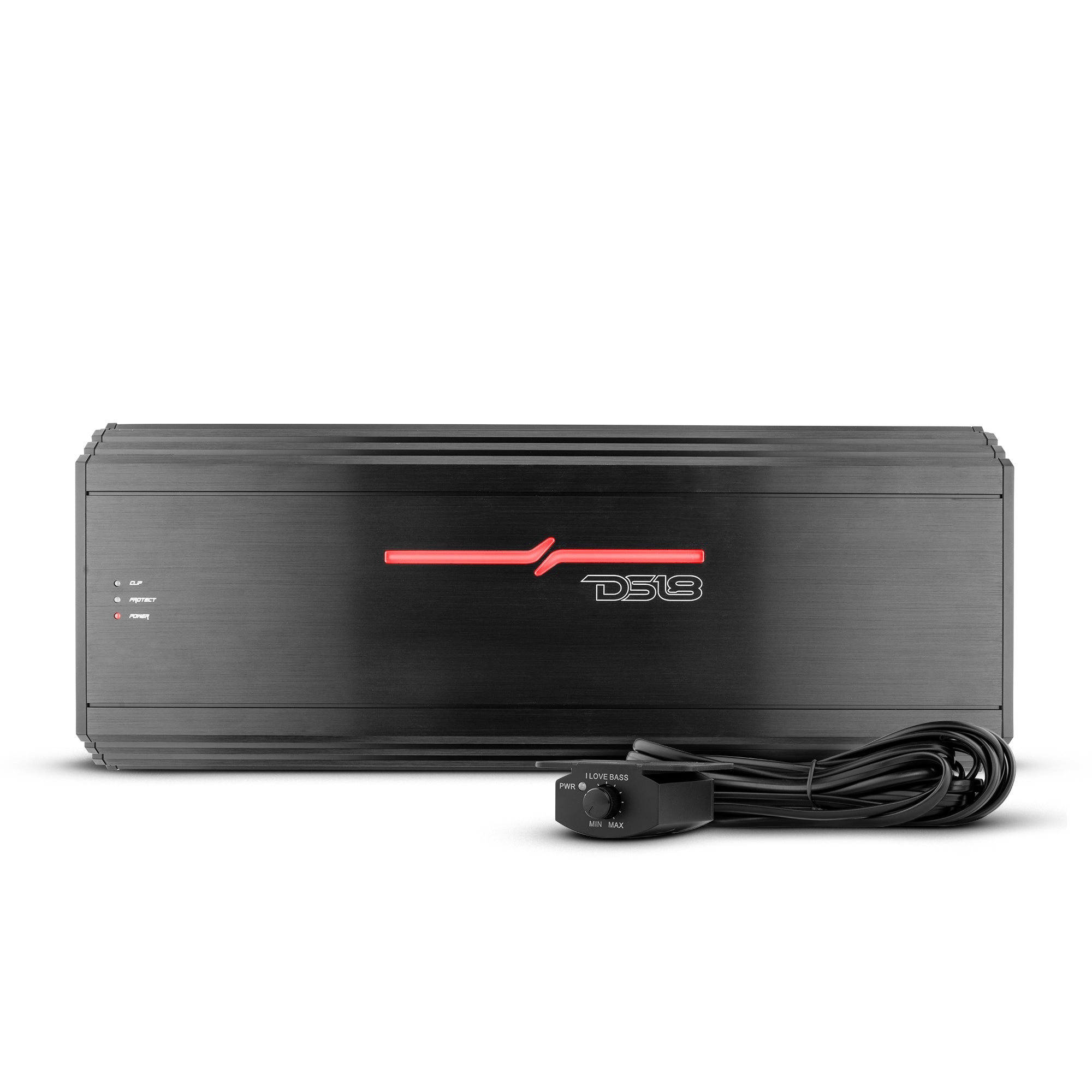

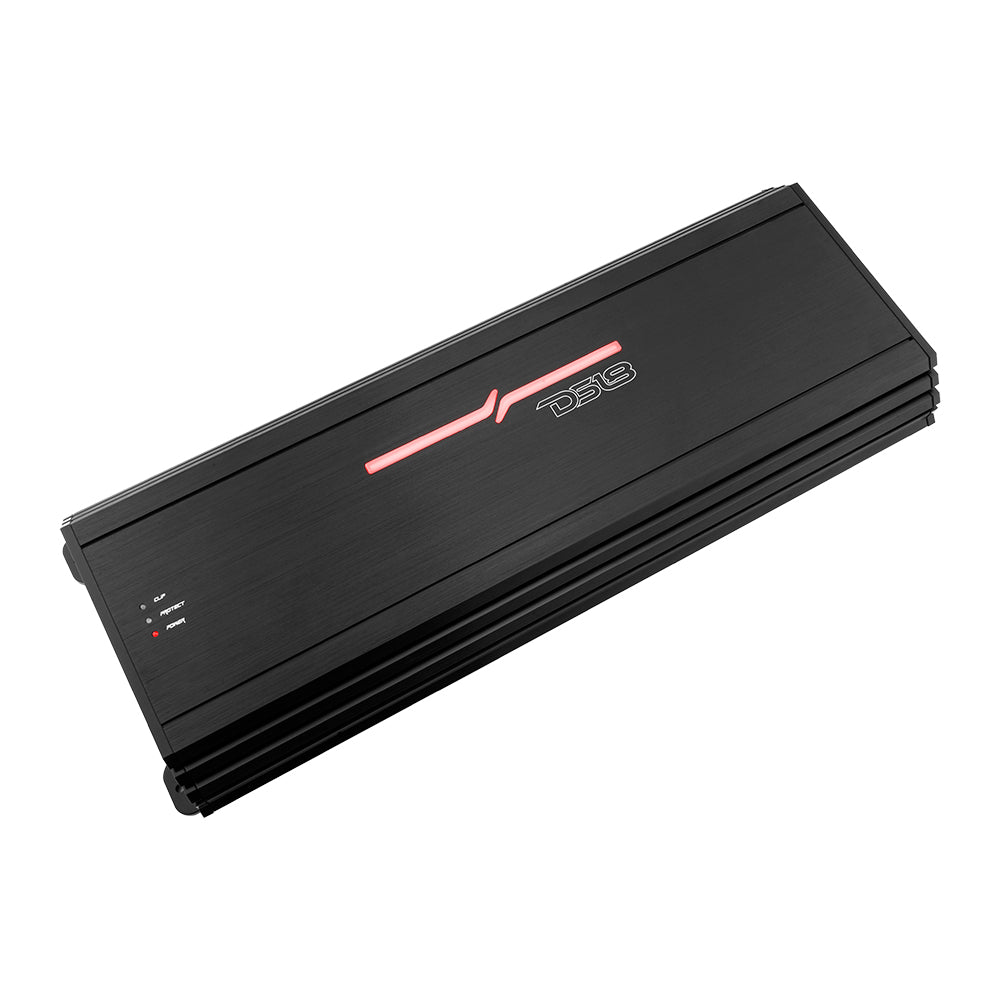

DS18 ZR2000.1D Class D 1-Channel Monoblock Amplifier 2000 Watts RMS-1 Ohm

The ZR Series amps are sure to power all your subwoofers with great sound acuity and massive bass frequency responses.

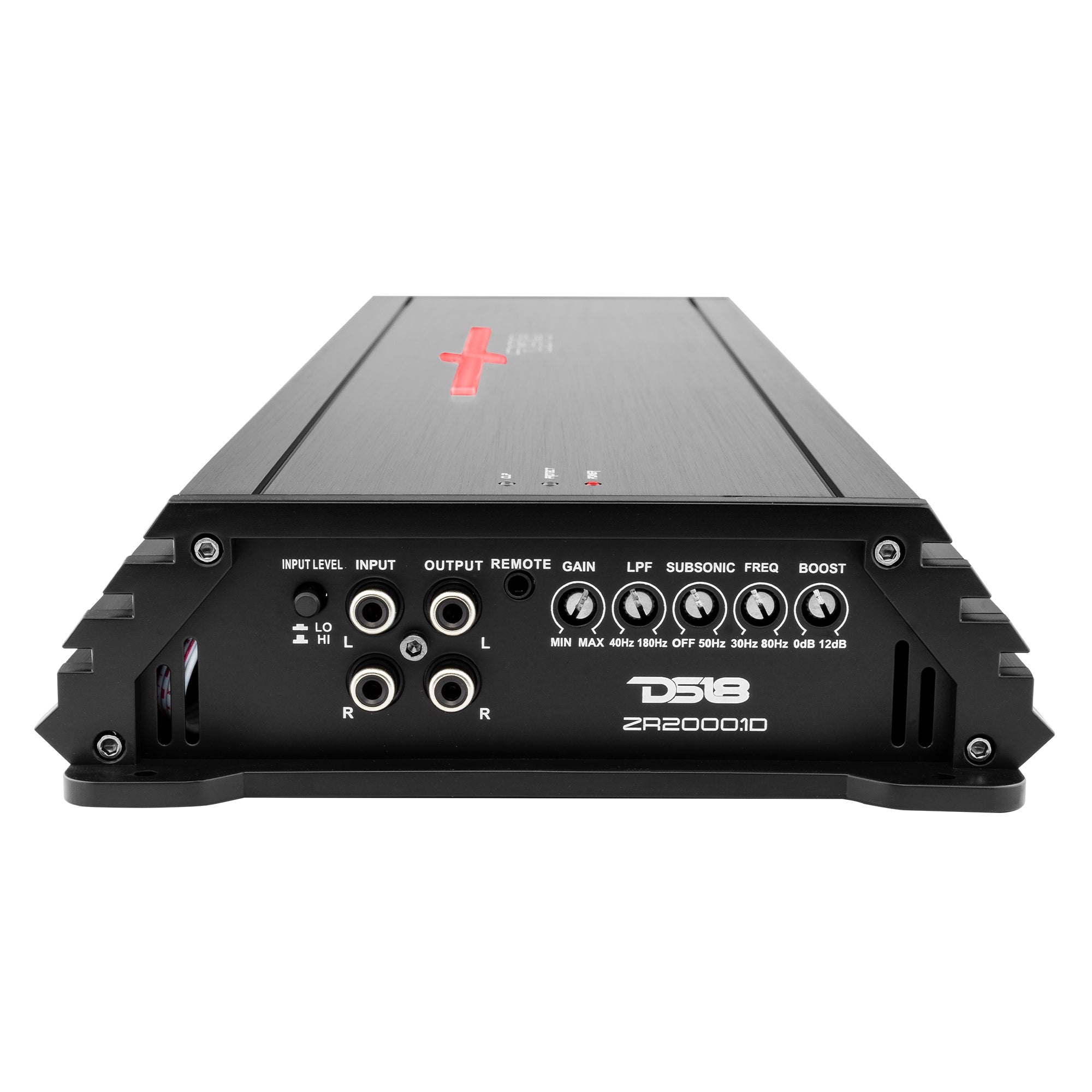

They have been designed to efficiently pump out hard hitting bass and put your subwoofers at their maximum potential. Easily tuned, The ZR2000.1D comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference.

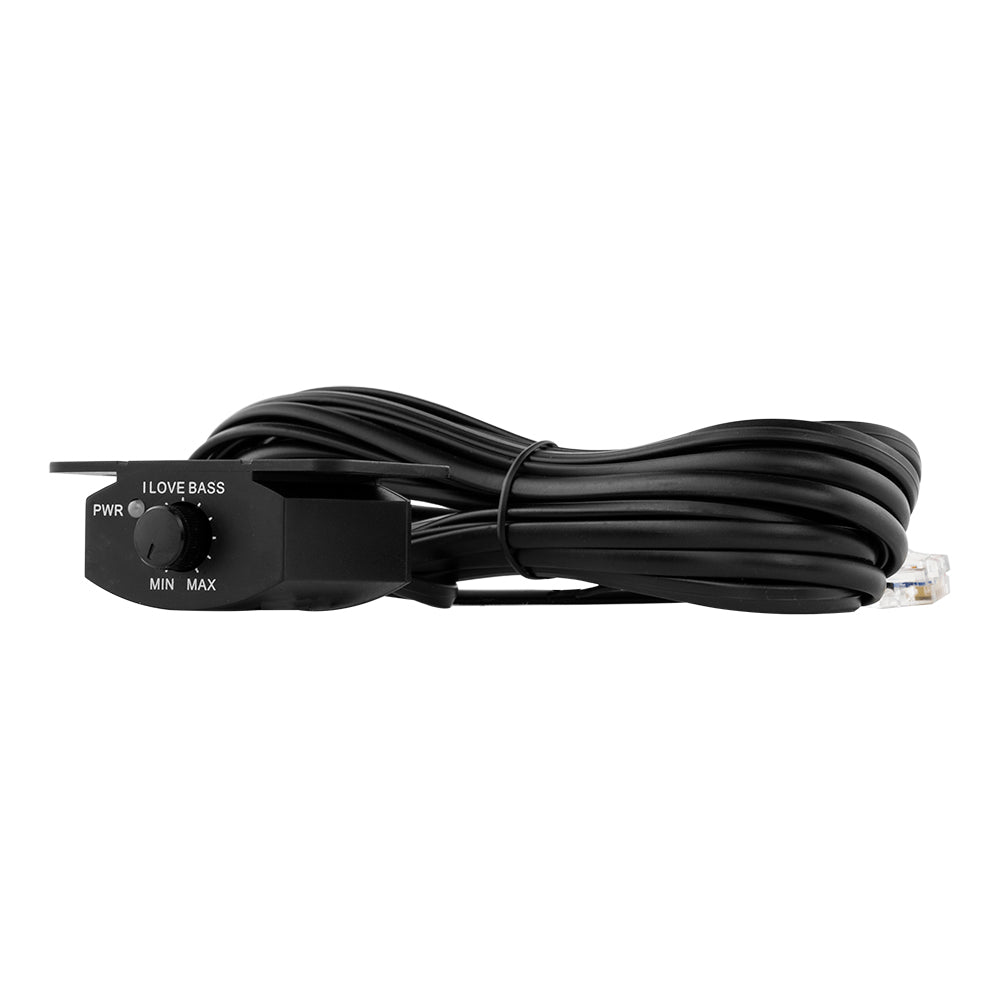

The included bass knob will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play. The ZR2000.1D is made to deliver 2000 watts RMS @ 1-Ohm, 1300 watts RMS @ 2-Ohms, and 800 watts RMS @ 4 ohms giving you the perfect power for your bass.


Key Features

  • Digital Class D Subwoofer Monoblock
  • MAX Wattage: 6000w Peak @ 1-Ohm
  • RMS Wattage: 2000 Watts RMS @ 1-Ohm, 1300 Watts RMS @ 2-Ohms, 800 Watts RMS @ 4-Ohms
  • Frequency Response: 10-220 Hz
  • Signal to Noise Ratio: >95Db
  • Efficiency at 4-Ohms: 85%
  • Total Harmonic Distortion: 0.01%
  • Input Range: .02-6v
  • Selectable X-Over: LPF fixed
  • Bass Boost: 0-12Db
  • Phase: 0-180
  • LED Indicator: Clipping, Power, Protect
  • Power and Ground Terminal: 0 Ga
  • Minimum Impedance: 1 Ohm


Good For:

    • Car Audio
    • Pro Audio
    • Motorcycles
    • Home Studio
    • Hi-Fi Installation
    • Off-Road
    • DIY Projects

Technical Details
                                        ZR2000.1D Product Manual
POWER
Total Watts (Peak) 6000W
RMS Power @ 4 ohm 800W
RMS Power @ 2 ohm 1300W
RMS Power @ 1 ohm 2000W
AUDIO
Frequency Response 10-220Hz
Signal to Noise Ratio >95dB
Efficiency @ 4ohm 80%
Damping Factor 220
Input Impedance 20K ohm
Channel Separation N/A
Total Harmonic Distortion (THD) 0.01%
Low Level Input Range 0.2-6V
High Level Input Yes
Selectable X-Over LPF Fixed
X-Over Filter Range 40-180Hz
Bass Boost Range 0-12dB
Bass Boost Frequency 30-80Hz
Infrasonic Filter 10-50Hz
Phase Selector No
FEATURES
Amplifier Class Digital
Amplifier Type Monoblock Subwoofer
Number of Channels 1
Minimum Impedance 1 ohm
Led Indicator clipping/protect/power

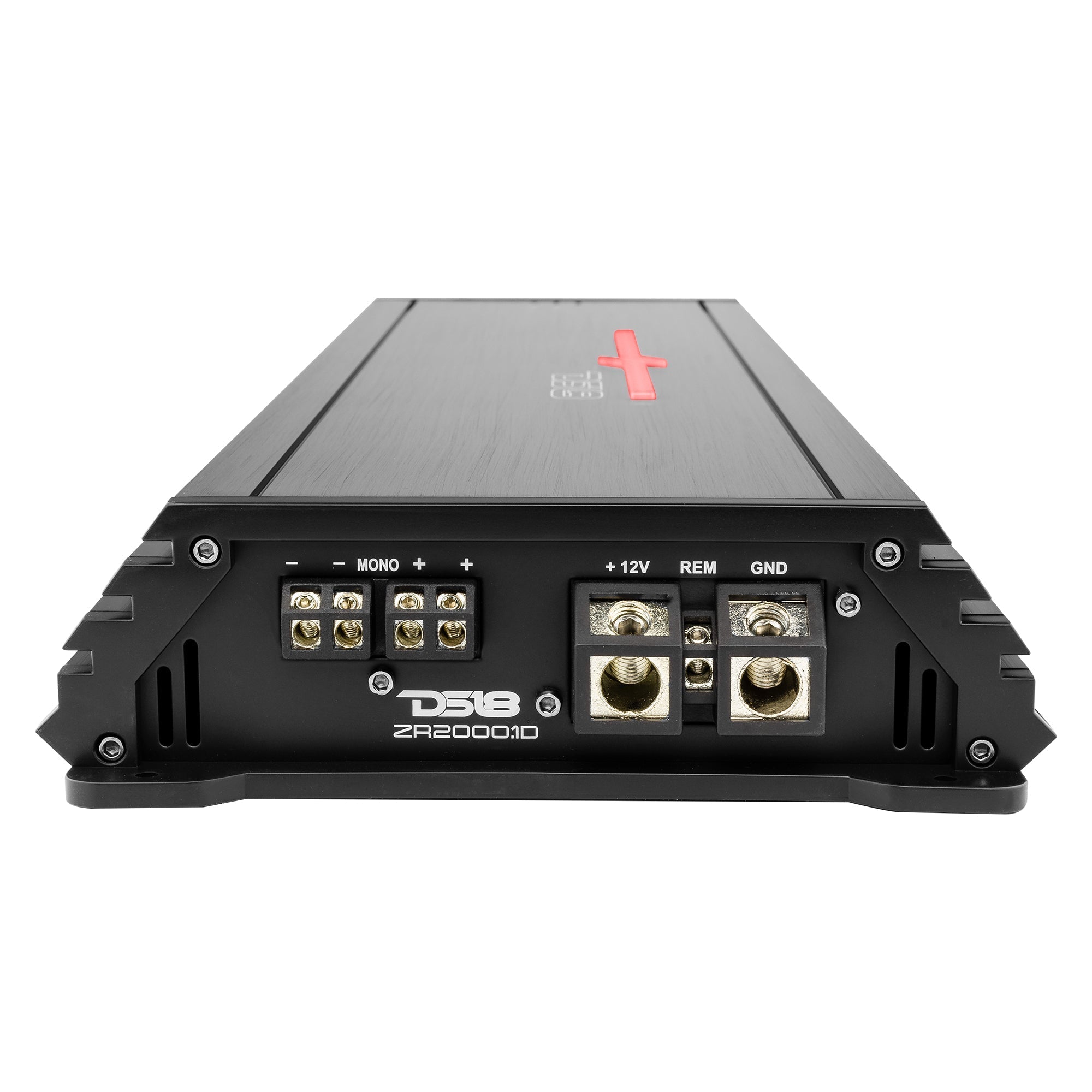

Power Input Terminal Size 0ga
Fuse Size 200A
Remote Level Control Yes / Dash Mount
Cooling Fan No
Voltmeter  No
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes <9 / >16 Volts
Clipping Protection  Yes
Body Color / Finish Black Aluminum Brush
MEASUREMENT
Overall Length 19.13" / 486mm
Overall Wide 7.24" / 184mm
Overall Height 2" / 53mm
Heatsink Length  17.75" / 451mm
Gross Single Unit Weight 8.1Lb
