DS18 ZR1000.1D Class D 1-Channel Monoblock Amplifier 1000 Watts RMS-1 Ohm
The ZR Series amps are sure to power all your subwoofers with great sound acuity and massive bass frequency responses.
They have been designed to efficiently pump out hard hitting bass and put your subwoofers at their maximum potential. Easily tuned, The ZR1000.1D comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference.

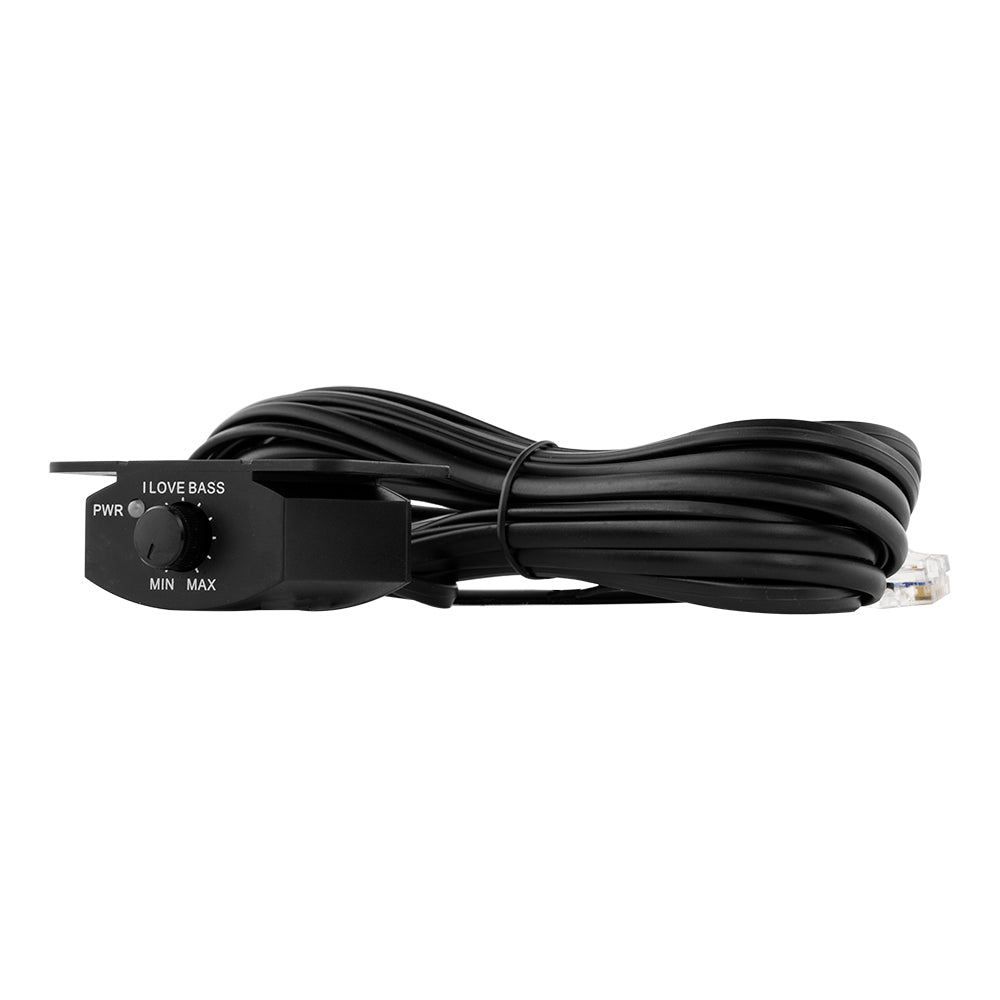

The included bass knob will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play. The ZR1000.1D is made to deliver 1000 watts RMS @ 1-Ohm, 650 watts RMS @ 2-Ohms, and 380 watts RMS @ 4 ohms giving you the perfect power for your bass.
Key Features
- Digital Class D Subwoofer Monoblock
- MAX Wattage: 3000w Peak @ 1-Ohm
- RMS Wattage: 1000 Watts RMS @ 1-Ohms, 650 Watts RMS @ 4-Ohms, 380 Watts RMS @ 4-Ohms
- Frequency Response: 10-220 Hz
- Signal to Noise Ratio: >95Db
- Efficiency at 4-Ohms: 80%
- Total Harmonic Distortion: 0.01%
- Input Range: .02-6v
- Selectable X-Over: LPF fixed
- Bass Boost: 0-12Db
- Phase: 0-180
- LED Indicator: Clipping, Power, Protect

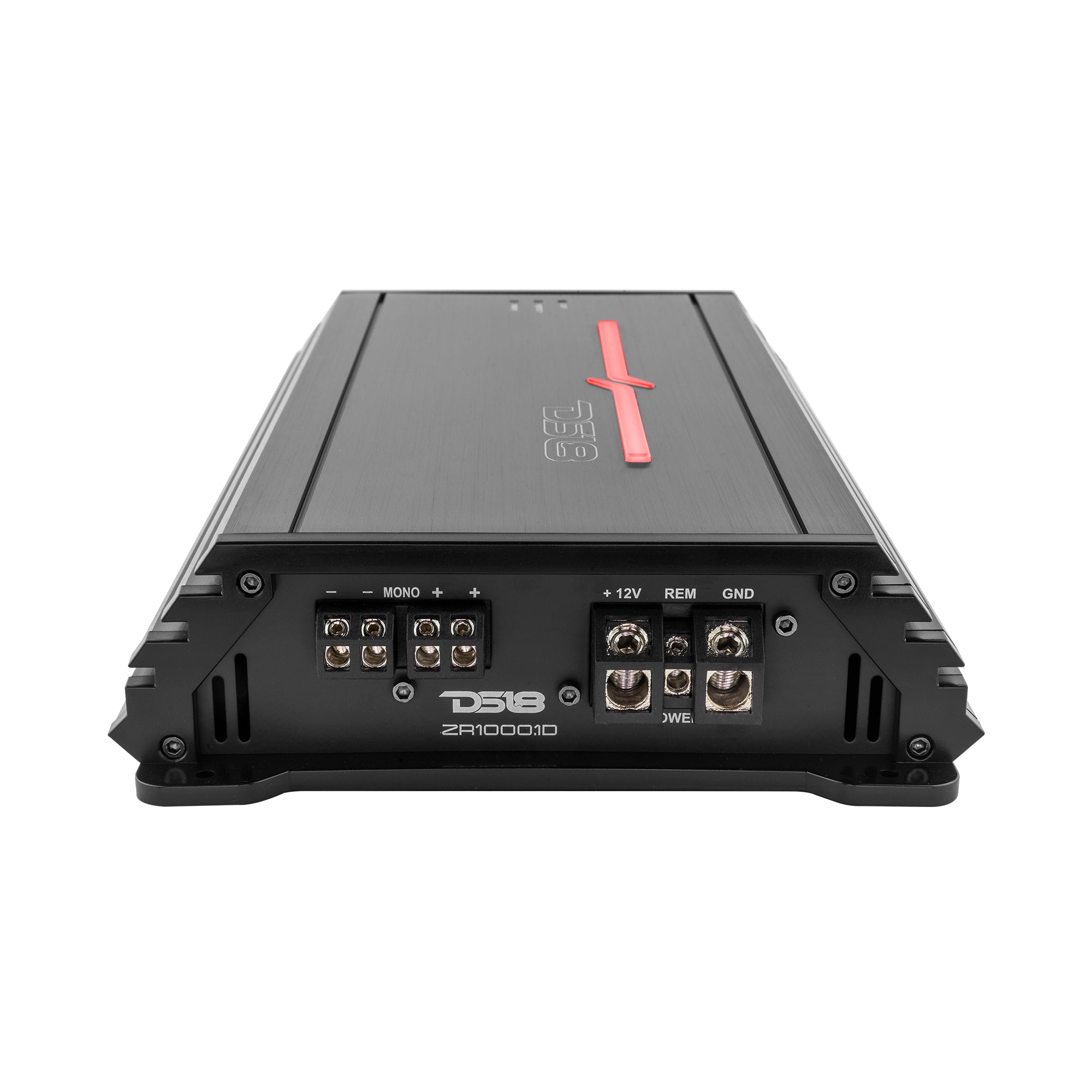

- Power and Ground Terminal: 4 Ga
- Minimum Impedance: 1 Ohm
Good For:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Off-Road
- DIY Projects
Technical Details
POWER Total Watts (Peak) 3000W RMS Power @ 4 ohm 380W RMS Power @ 2 ohm 650W RMS Power @ 1 ohm 1000W AUDIO Frequency Response 10-220Hz Signal to Noise Ratio >95dB Efficiency @ 4ohm 80% Damping Factor 220 Input Impedance 20K ohm Channel Separation N/A Total Harmonic Distortion (THD) 0.01% Low Level Input Range 0.2-6V High Level Input No Selectable X-Over LPF Fixed X-Over Filter Range 40-180Hz Bass Boost Range 0-12db Bass Boost Frequency 30-80hz Infrasonic Filter 10-50hz Phase Selector No FEATURES Amplifier Class Digital Amplifier Type Monoblock Subwoofer Number of Channels 1 Minimum Impedance 1 ohm Led Indicator clipping/protect/power Power Input Terminal Size 4ga Fuse Size 100A Remote Level Control Yes / Dash Mount Cooling Fan No Voltmeter No Thermal Protection Yes Over-Load Protection Yes DC Output Protection Yes Short Circuit Output Protection Yes Voltage Input Protection Yes <9 / >16 Volts Clipping Protection Yes Body Color / Finish Black Aluminum Brush MEASUREMENT Overall Length 11.8" / 301mm Overall Wide 7.24" / 184mm Overall Height 2" / 53mm Heatsink Length 10.47" / 266mm Gross Single Unit Weight 5.8Lb
