X 1-Channel Ultra Compact Class D Amplifier 300 Watts Rms @ 1-Ohm

DS18 X1 Ultra Compact Monoblock Class D 1-Channel Car Amplifier 900 Watts  Amazing power and an amazing...
Vendor: DS18
SKU: X1
Availability: Out Of Stock
Product type: Car Audio : Amplifier
$224.95
$224.95
Please hurry! Only 0 left in stock
Subtotal: $224.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

X 1-Channel Ultra Compact Class D Amplifier 300 Watts Rms @ 1-Ohm

X 1-Channel Ultra Compact Class D Amplifier 300 Watts Rms @ 1-Ohm

$224.95

X 1-Channel Ultra Compact Class D Amplifier 300 Watts Rms @ 1-Ohm

$224.95

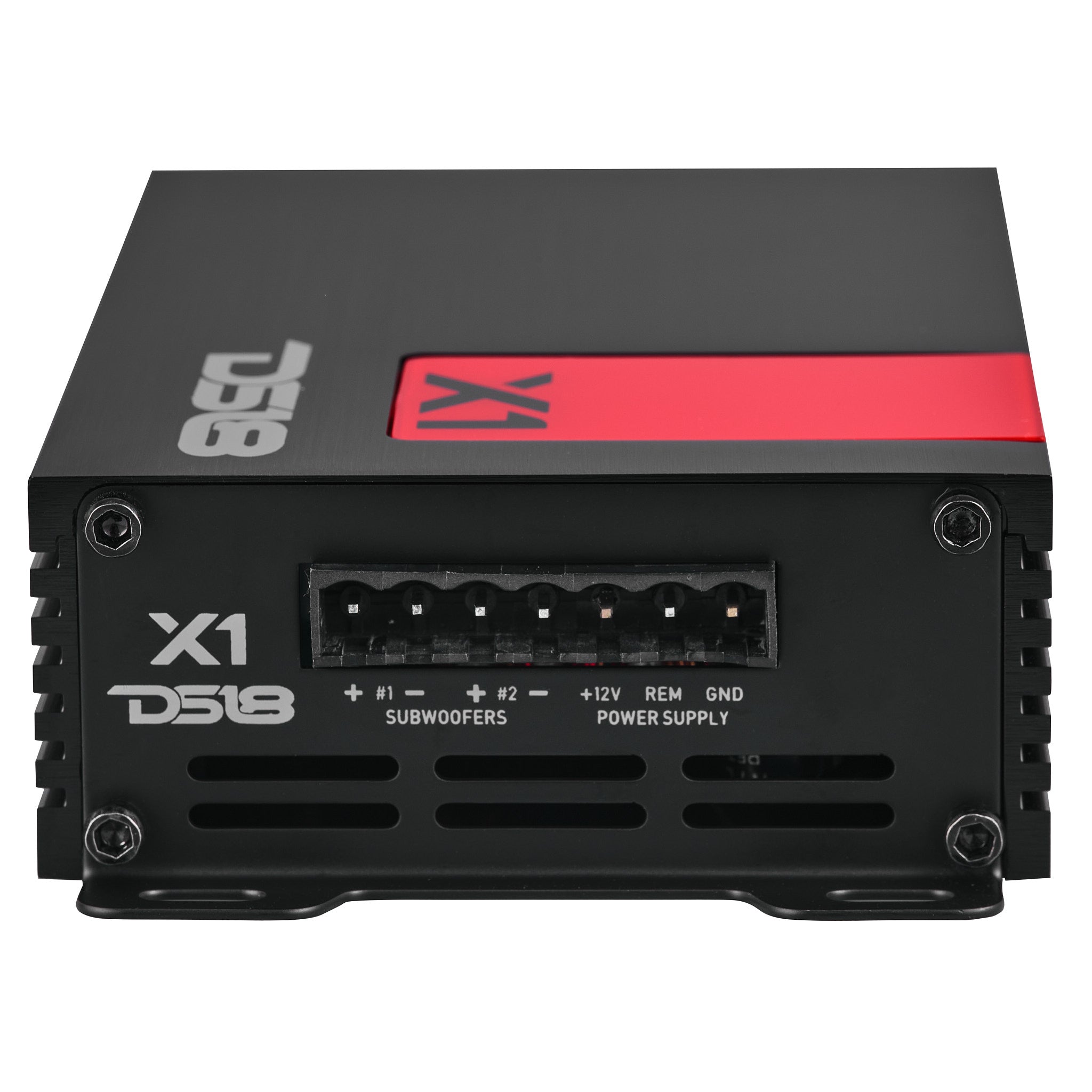

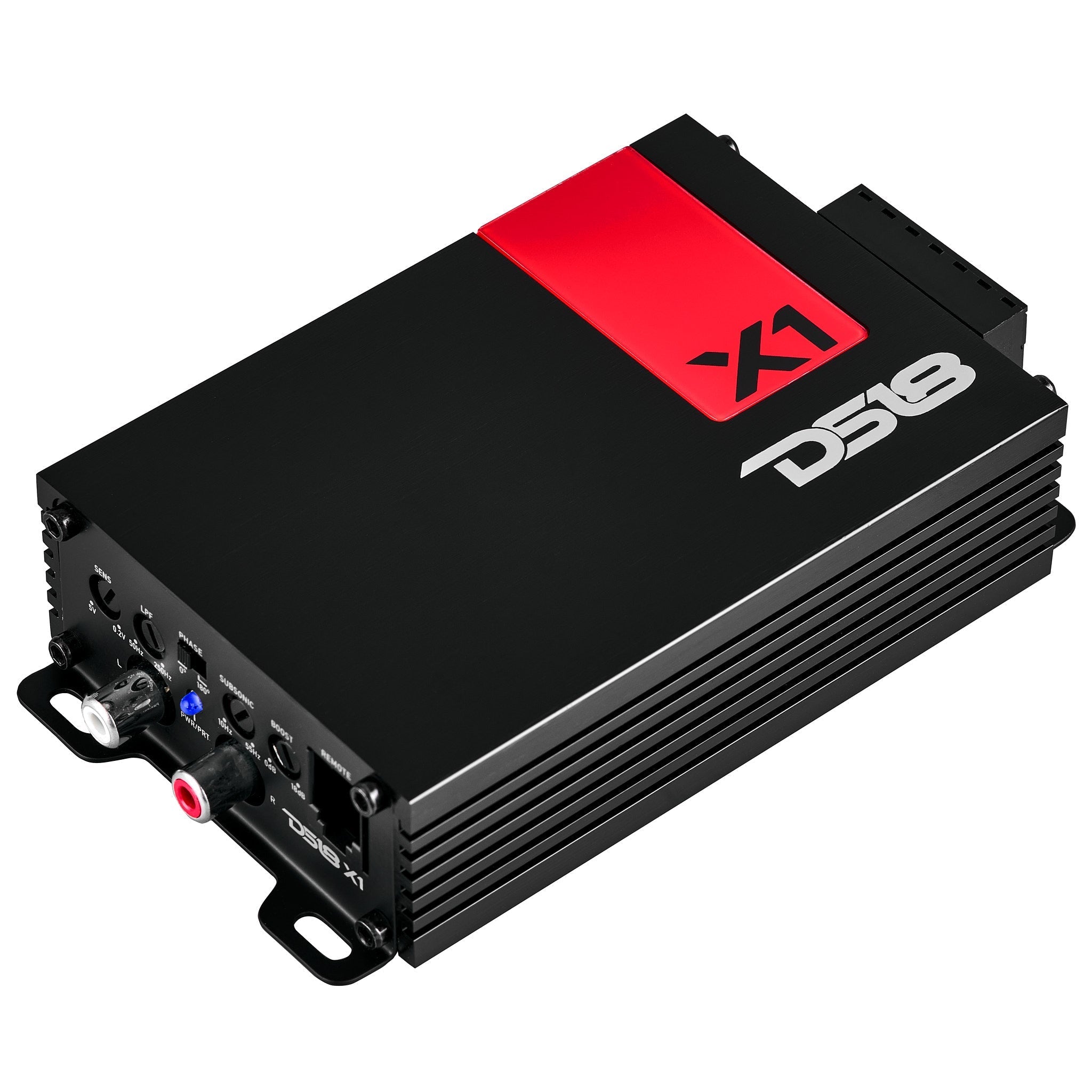

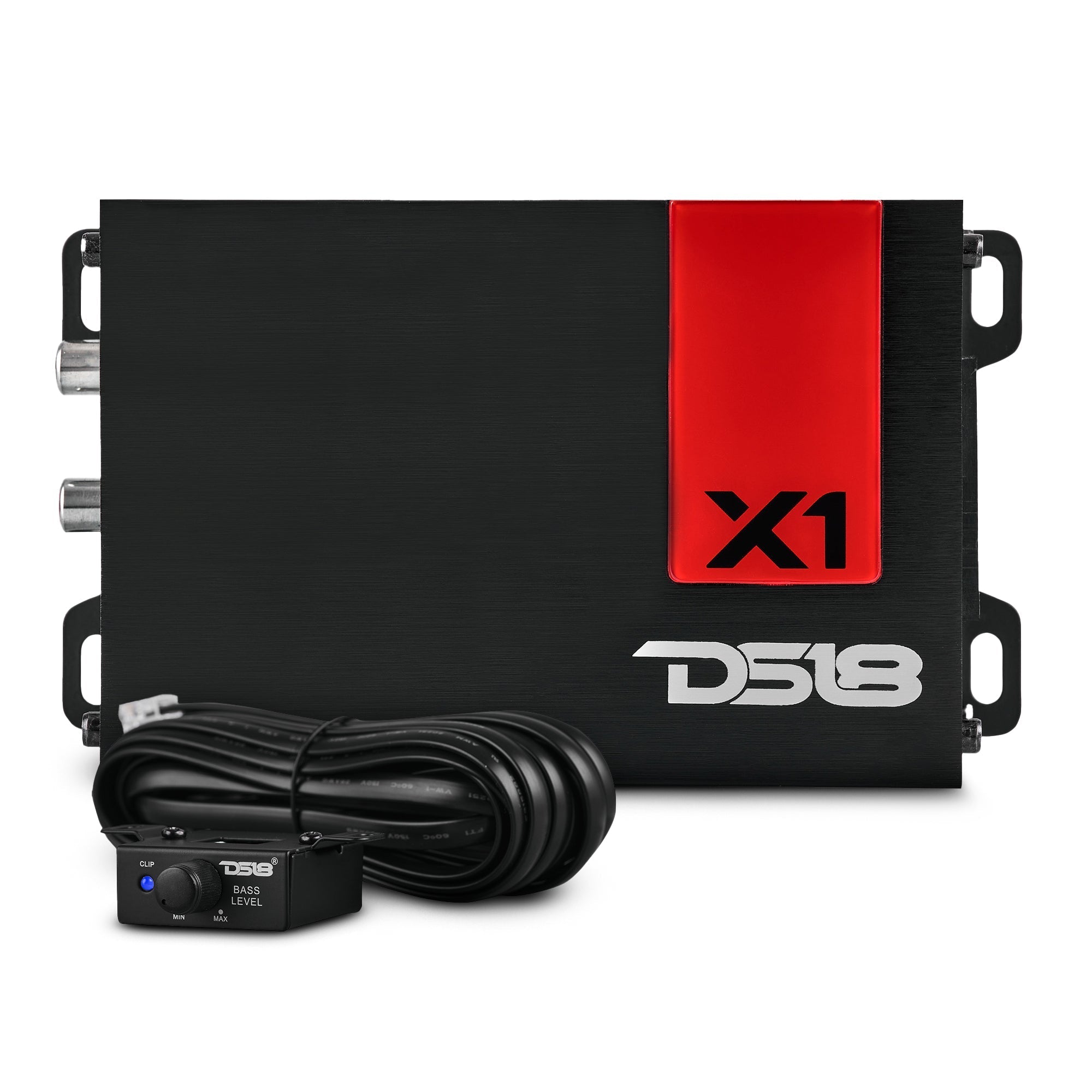

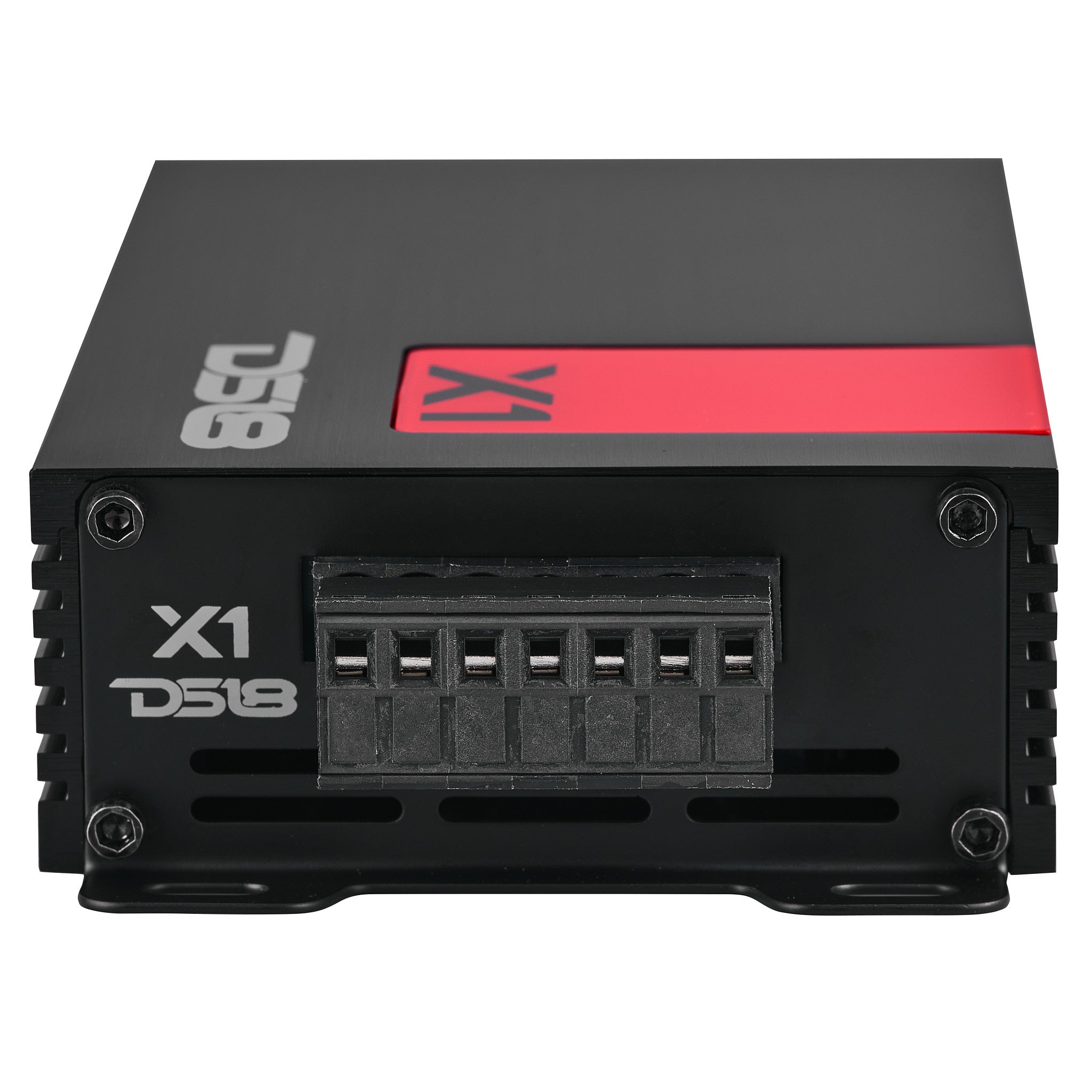

DS18 X1 Ultra Compact Monoblock Class D 1-Channel Car Amplifier
900 Watts

Amazing power and an amazing small footprint is what the DS18 X1 amp is all about. This tiny amp packs a powerful punch all while fitting in the palm of your hand! It is a perfect selection for audiophiles cramming audio in tight spaces. For example, you can fit multiple X series amps in most motorcycle fairings powering an entire system all while safely tucked away.

Small enough to fit in your hand but powerful enough to power four high powered speakers, this bass amp little powerhouse pumps out 140 watts RMS at 4 ohms, 220 watts RMS at 2 ohms and 300 watts RMS at 1 ohm which is enough to get super loud sound with great clarity.

Highlights

  • Huge power for such a small size giving it high versatility in applications in which it can be used.
  • Fits in most tight spaces and a high power per size ratio.
  • 2 and 4 ohms stable pumping out 140 watts RMS at 4 ohms, 220 watts RMS at 2 ohms and 300 watts RMS at 1 ohm.

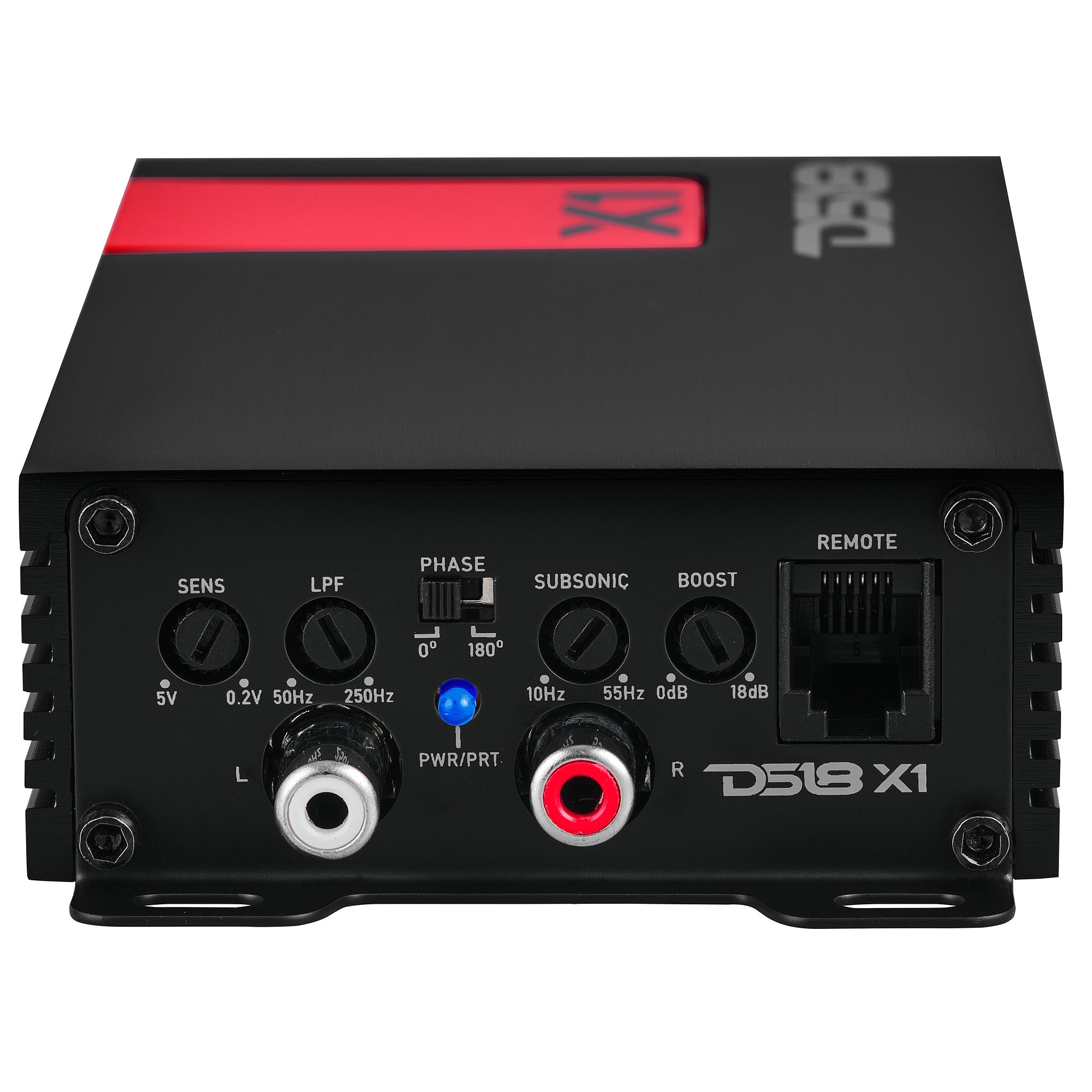

  • Easily adjustable filters making tuning for mids or tweeters easy.

Great For

    • Motorcycle Audio
    • Pro Audio
    • Car Audio
    • Marine Audio
    • Powersports Audio
    • Jeep Audio

Technical Details
                       X1 Product Manual

CLASS CLASS-D
AMPLIFIER TYPE MICRO MONOBLOCK AMP
CHANNELS 1
TOTALWATTS (PEAK) 900W
RMS POWER @ 4 OHMS 140W x 1CH
RMS POWER @ 2 OHMS 220W x 1CH
RMS POWER @ 1 OHM 300W x 1CH
RMS POWER @ 4 OHMS BRIDGE -
FREQUECY RESPONSE 20Hz - 500Hz
SIGNAL/NOISE RATIO >90 dB
EFFICIENCY @ 4 OHMS >80%
DAMPING FACTOR >200
THD % <0.2%
LOW LEVEL INPUT RANGE 0.2-5V
SELECTABLE X-OVER FIXED LPF
X-OVER FILTER RANGE 50Hz - 250Hz
BASS BOOST RANGE 0 - 18 dB
BASS BOOST FREQUENCY 40Hz
INFRASONIC FILTER 10 - 55Hz
PHASE SELECTOR 0 - 180 DEGREES
MINIMUM IMPENDANCE 1 OHM
LED INDICATOR POWER/PROTECTION
POWER INPUT SIZE 12GA
FUSE RATING 30A

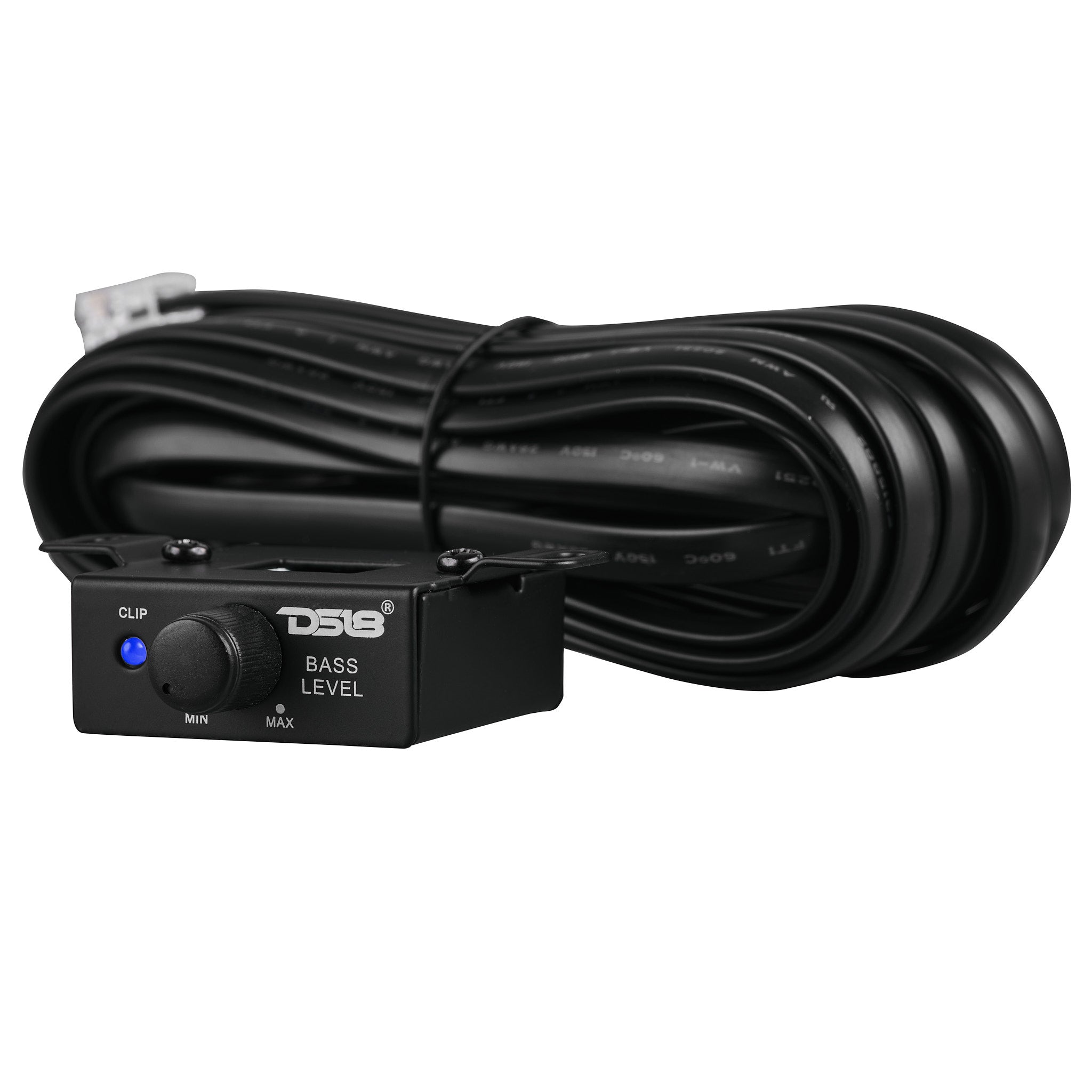

REMOTE LEVEL CONTROL YES - DASH MOUNT
THERMAL PROTECTION YES
OVER-LOAD PROTECTION YES
DC OUTPUT PROTECTION YES
SHORT CIRCUIT OUTPUT PROTECTIONVOLTAGE INPUT PROTECTION YES
VOLTAGE INPUT PROTECTION YES
DIMENSIONS LxWxH (INCHES) 5.54 x 3.24 x 1.37"
HEATSINK LENGTH 4.75"
COMPACT SIZE TO EASY INSTALLATION FOR ANY APLICATIONS YES
STABLE/RELIABLE FOUR LAYERS TRACES PCB DESIGN YES
SURFACE MOUNT COMPONENT TECHNOLOGY YES
AUDIO PRECISION QUALITY CONTROL VERIFICATION YES
CONFIGURATION 2CH/4CH INPUT SELECTOR NO
