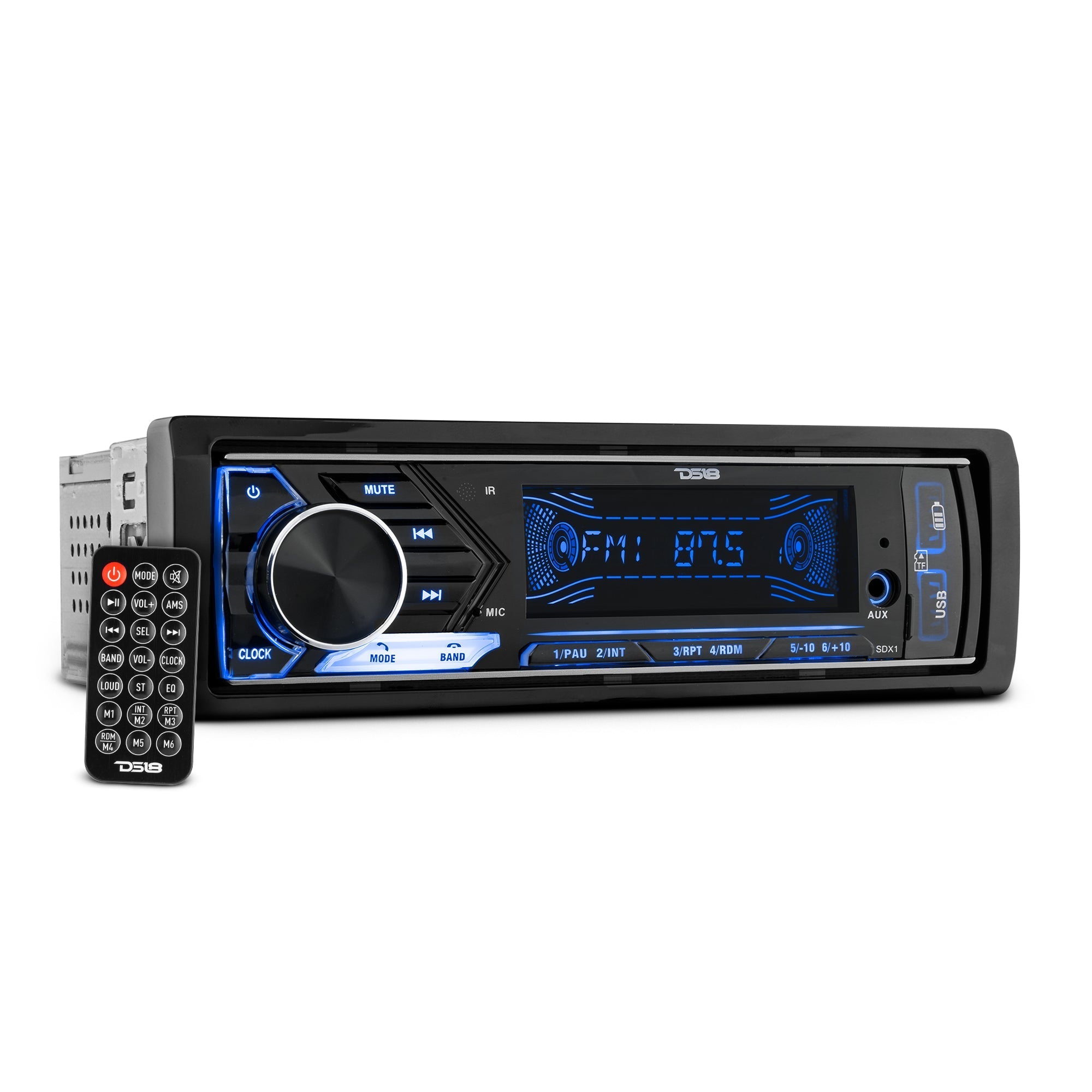

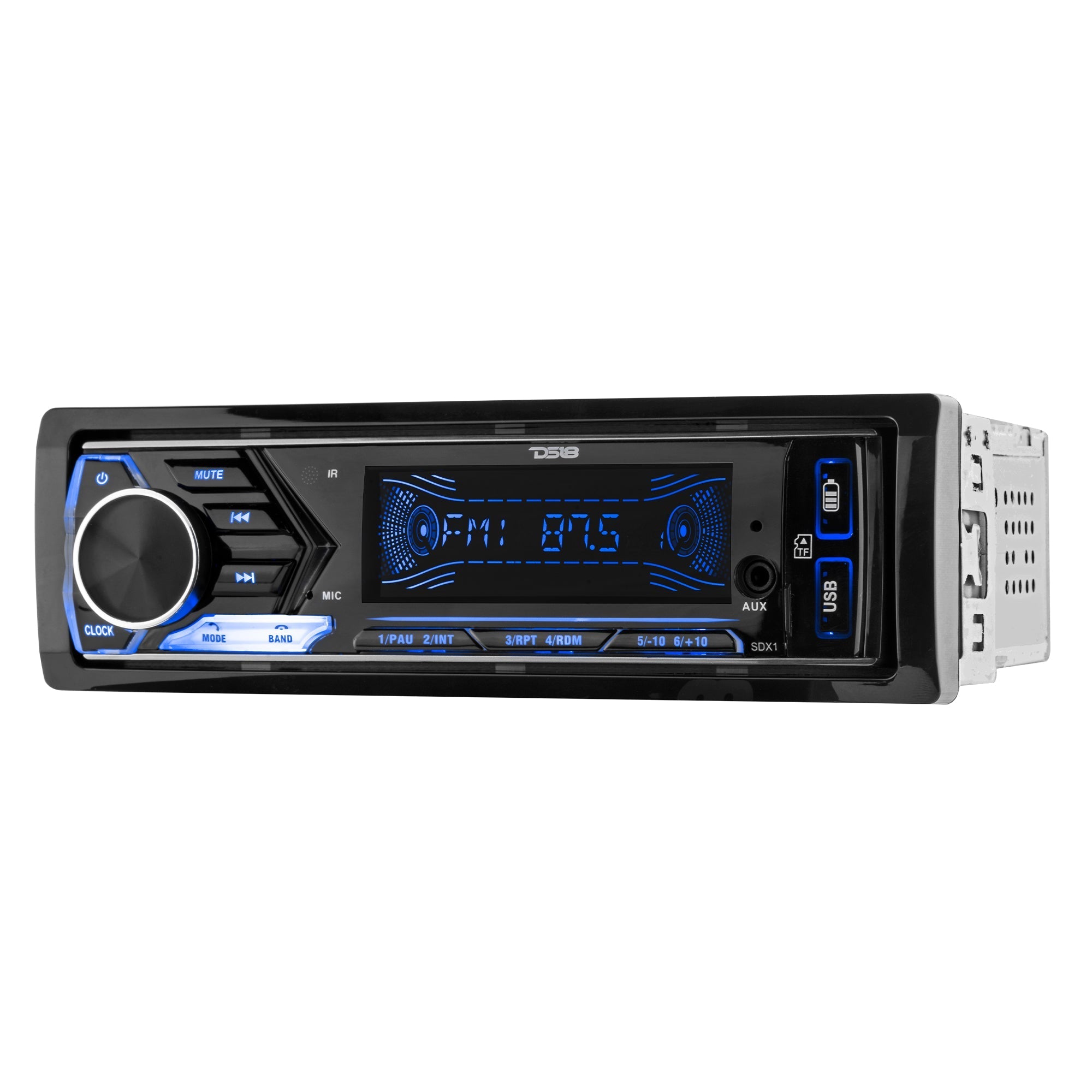

Single-DIN Digital Media Receiver Mech-Less Player, Bluetooth, Dual USB ,7 Volt Preouts

DS18 SDX1 Single Din Digital Media Receiver Mech-Less Player, Bluetooth, Dual USB ,7 Volt Preouts

Your radio is the driving source of all your music and feeds your amplifiers a clean signal that ensures long life and amazing sound quality out of your sound system. The SDX1 was designed to do just that, along with providing you precise and easy to use controls to get the most out of your audio experience.

This mech-less single din, perfect fit unit pushes out 50 watts max for all 4 channels while the pre-amp output is adjustable up to 7v, which is very important for maximizing the most out of your amplifiers and getting the cleanest sound while maintaining high volume levels. Mech-less means this unit has no CD/DVD player. However, there is a USB, SD, and BT reader that are used for the main file sources that stream and read up to 64GB drives. Radio stations will come in strong and clear and can be set on any of the 18 memory locations.

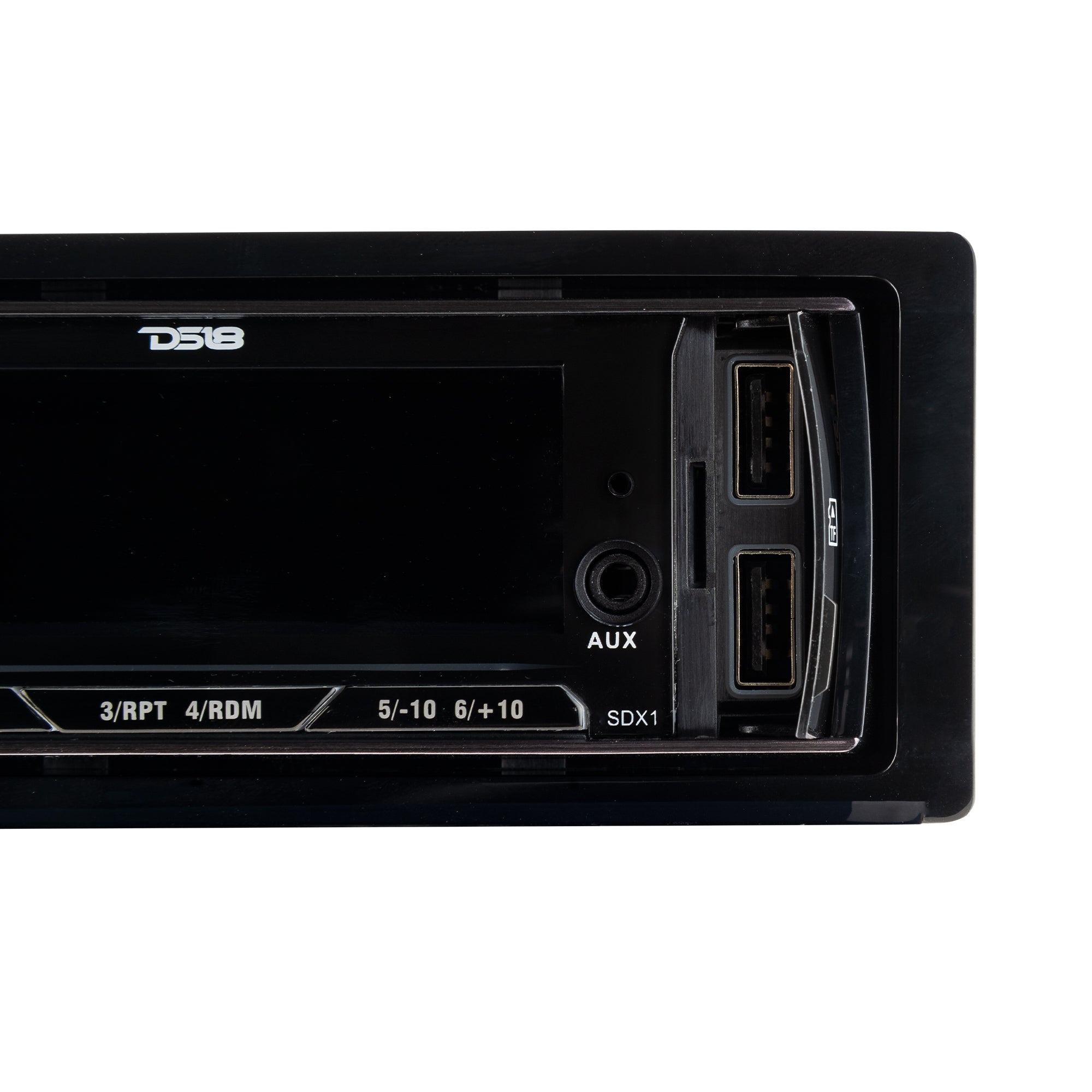

You can also set the colors of the unit because of the backlit RGB keys to match your mood or existing color schemes, while the easy to read 3 inch VA white display remains bright and clear. You can tune your sound easily with the 2 band equalizer which also allows you to adjust vital functions like level, bass, treble, balance, fade, and subwoofer controls precisely and with ease. Connect to your USB easily with two front USB ports which both have charging functionality with an added front AUX input jack.

The SDX1 is sure to be the best starting decision you can make if you are looking for a single din, high powered head unit, with high pre-amp voltage and tons of additional options to start your audio build.

Highlights

• Mech-less Single Din USB/BT Receiver
• Single Din Perfect Fit Mounting
• FM Radio: 18 Memory Locations
• Source: USB, SD, BT Reader / Streamer
• Supported Media Files: MP3, WMA, FLAC, MAV

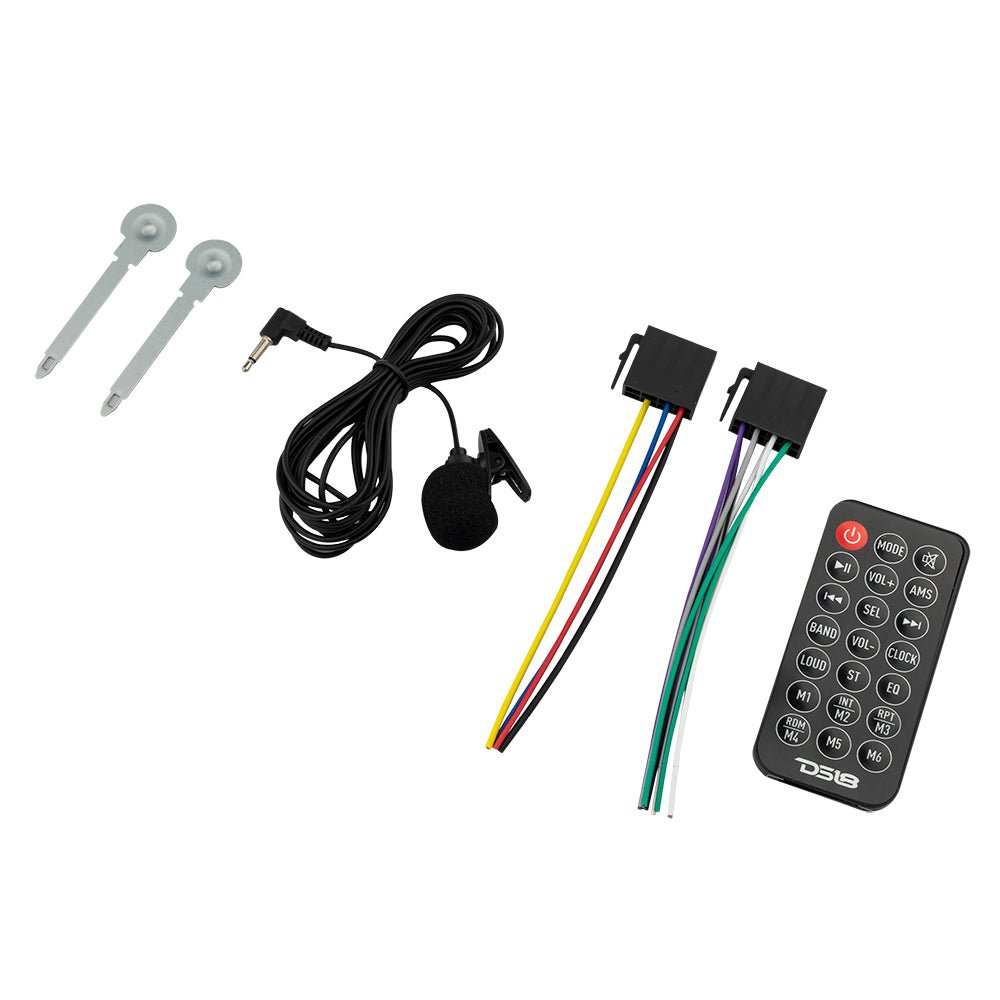

• Remote control: Infrared
• RGB: 7 Selectable Colors
• Display: 3" VA White Backlit
• Power: 50 x 4 Watts Max
• Equalizer: 2 Bands with Adjustable Bass, Treble, and Subwoofer
• Pre-amp output: 7v
• Inputs: USB, SD, BT, Front AUX

Good for:

• Car Audio
• DIY Projects

Technical Details

                                            SDX1M Product Manual
