PS Shallow-Mount Water Resistant 10" Subwoofer | 500W RMS Single Voice Coil 4-Ohm

DS18 PSW10.4S 10" Water Resistant Shallow Subwoofer 1000 Watts 4 Ohm SVC There’s always space for bass...
Vendor: DS18
SKU: PSW10.4S
Availability: Out Of Stock
Product type: Car Audio : Subwoofer
$179.95
$179.95
Please hurry! Only 0 left in stock
Subtotal: $179.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

PS Shallow-Mount Water Resistant 10" Subwoofer | 500W RMS Single Voice Coil 4-Ohm

PS Shallow-Mount Water Resistant 10" Subwoofer | 500W RMS Single Voice Coil 4-Ohm

$179.95

PS Shallow-Mount Water Resistant 10" Subwoofer | 500W RMS Single Voice Coil 4-Ohm

$179.95

DS18 PSW10.4S 10" Water Resistant Shallow Subwoofer 1000 Watts 4 Ohm SVC

There’s always space for bass with the PSW10.4S!

The PSW10.4S mounts in depths as small as 3.5” and can be utilized in both ported and sealed boxes for great bass in a tight area. The high-quality push terminals on the PSW series subwoofers also make connection to your speaker wire and amp extremely easy.

This sub handles 500 W RMS and 1000 W MAX Power with a 84 dB sensitivity: high sensitivity for a shallow mount sub allowing this light subwoofer to reproduce heavy clear bass!

The PPI Molding on the cone used by the PSW10.4S is also water resistant, making this speaker perfect for your bike, off-road or marine vehicle. The steel basket gives this speaker even stronger resistance against shock and vibration.

This sub comes in 4 Ohms Single Voice Coil configuration so if wired appropriately it’s insane power will bring all your music to life!

Highlights

  • DS18's PSW shallow subwoofer series are known for producing great bass without sacrificing much space.
  • Rubber surround design fortifies this subwoofer and helps it push out cleaner and clearer bass
  • Shallow mount size allows this sub to fit in compact places and requires less box space than other subs.
  • High 9.5mm Xmax which produces full and deep bass with the correct box spec.

Great For

  • Car Audio
  • Bike Audio
  • Marine Audio
  • Off-Road Audio
  • Powersports Audio

Technical Details
              Download PSW10.4S Product Manual

SPECIFICATIONS
Nominal Diameter  10” / 254 mm
Nominal Impedance  4 Ohms
RMS Power Handling  500 W
MAX Power Handling  1000 W
Sensitivity (1w/1m)  84 dB
Frequency Response 20 - 800 Hz
Recommended Lo Pass Crossover 90 Hz
MOTOR
Voice Coil Diameter 2.5" / 63.5 mm
Voice Coil Former Material  Aluminum
Winding Material  Copper
Cone Material Water Resistant PPI
Surround Material Rubber
Basket Material  Steel
Basket Color/Finish Matt Black
Magnet Material Ferrite
Magnet Weight 58 Oz
Displacement Volume 0.8L / 0.028ft3
RECOMMENDED ENCLOSURES
Sealed Internal Volume 14.2L / 0.5ft3
Sealed Box Output Response 44 Hz

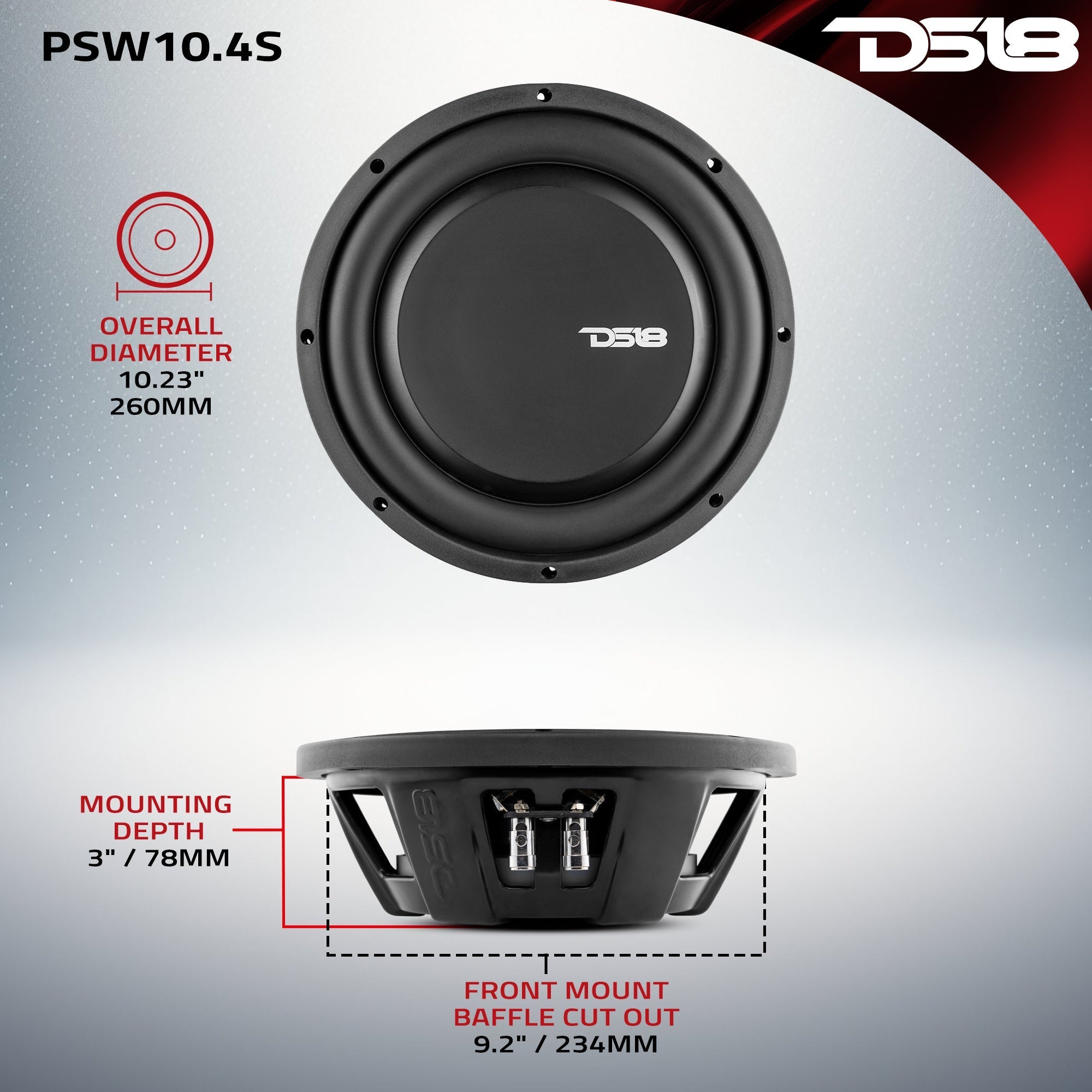

MEASUREMENT
Overall Diameter 10.23" / 260 mm
Overall Depth 3.6" / 92 mm
Front Mount Baffle Cutout 9.2" / 234 mm
Mounting Depth 3" / 78 mm
Motor Diameter 6.5" / 165 mm
