PRO 8" Coaxial Hybrid Mid-Range Water resistant Cone Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm

DS18 PRO-HY8.4B 8" Water Resistant Mid-Range Loudspeaker with Built-in Driver 500 Watts 4-Ohm DS18's HYBRID speakers give...
Vendor: DS18
SKU: PRO-HY8.4B
Availability: Out Of Stock
Product type: Car Audio : Loudspeakers, Motorcycle : Loudspeakers
$129.95
$129.95
Please hurry! Only 0 left in stock
Subtotal: $129.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

PRO 8" Coaxial Hybrid Mid-Range Water resistant Cone Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm

PRO 8" Coaxial Hybrid Mid-Range Water resistant Cone Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm

$129.95

PRO 8" Coaxial Hybrid Mid-Range Water resistant Cone Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm

$129.95

DS18 PRO-HY8.4B 8" Water Resistant Mid-Range Loudspeaker with Built-in Driver 500 Watts 4-Ohm

DS18's HYBRID speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered pro audio mega speaker combines both a 8" high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.

Highlights

  • Hybrid design combines high wattage midrange and driver together in one beautiful frame.
  • High volume 8" and 1" driver rated at 250w RMS and 500 Max for crazy loud volume in a full range of frequencies.
  • Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!

hybrid mid-range loudspeaker with built-in driver

hybrid mid-range loudspeaker with built-in driver

hybrid mid-range loudspeaker with built-in driver

hybrid mid-range loudspeaker with built-in driver

Technical Details
                                                    PRO-HY8.4B Product Manual

SPECIFICATIONS
Nominal Diameter 8”
Nominal Impedance 4 Ohms
RMS Power Handling 250W
MAX Power Handling 500W
Sensitivity (1w/1m) 97dB
Frequency Response 80Hz-20KHz
Recommended Hi Pass Crossover 100 Hz
Number of Ways 2
Pair or Single Single
MID-RANGE SPECIFICATIONS
Voice Coil Diameter 1.5” / 38.6 mm
Voice Coil Former Material Glass Fiber
Winding Material CCAW
Cone Material Water Resistant Paper
Surround Material Cloth
Basket Material Aluminum
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 27 oz
Displacement volume 0.051L
THIELE & SMALL PARAMETERS
Equivalent Volume Vas 10.048L
Excursion (one way) Xmax 9.2 mm
Free Air Resonance FS 135Hz
Mechanical Factor Qms 5.96
Electrical Factor Qes 1.321
Total Factor Qts 1.011
Mechanical Mass Mms 9.69g
Mechanical Compliance Cms 137.345 mm/N
BL Factor BL 4.58
Voice Coil Inductance Le 4.22mH
Cone Area Sd 226.98 Cm2
DC Resistance Re 3.4 ohms
Mechanical Mass w/o Air Mmd 7.724g
DRIVER SPECIFICATIONS
Voice Coil Diameter 1” / 25.4 mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Neodymium
Horn Diameter 3.26"

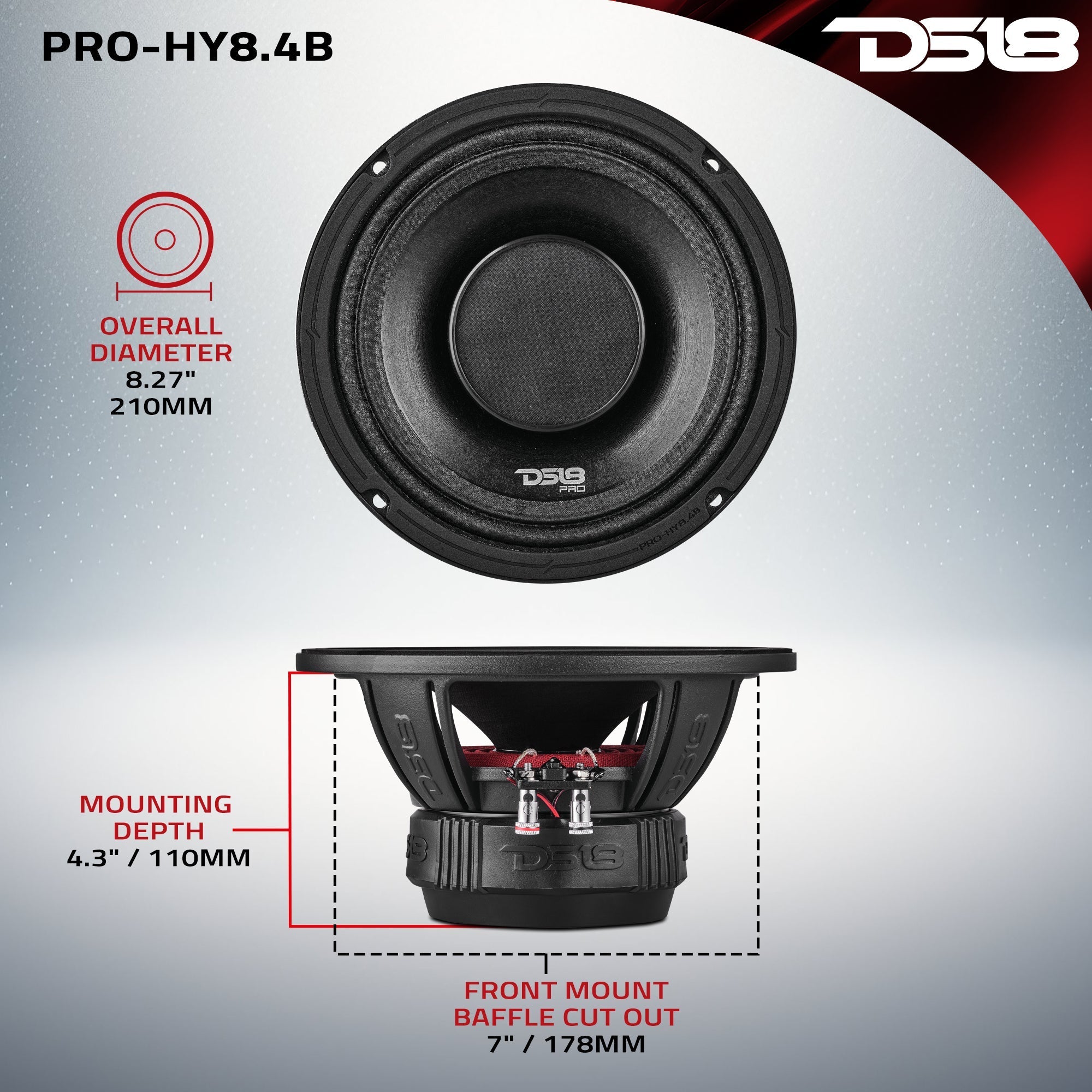

MEASUREMENTS
Overall Diameter 8.31" / 211mm
Overall Depth 4.65" / 118.2mm
Front Mount Baffle Cutout 7.1" / 180.3mm
Mounting Depth 4.29" / 109mm
Motor Diameter 4.59" / 116.6mm
