PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 8-Ohm

DS18 PRO-NEO6.8R 6.5" Neodymium Mid-Range Loudspeaker 600 Watts 8-Ohm Versatility is paramount in large and small audio...
Vendor: DS18
SKU: PRO-NEO6.8R
Availability: Out Of Stock
Product type: Car Audio : Loudspeakers
$191.95
$191.95
Please hurry! Only 0 left in stock
Subtotal: $191.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 8-Ohm

PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 8-Ohm

$191.95

PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 8-Ohm

$191.95

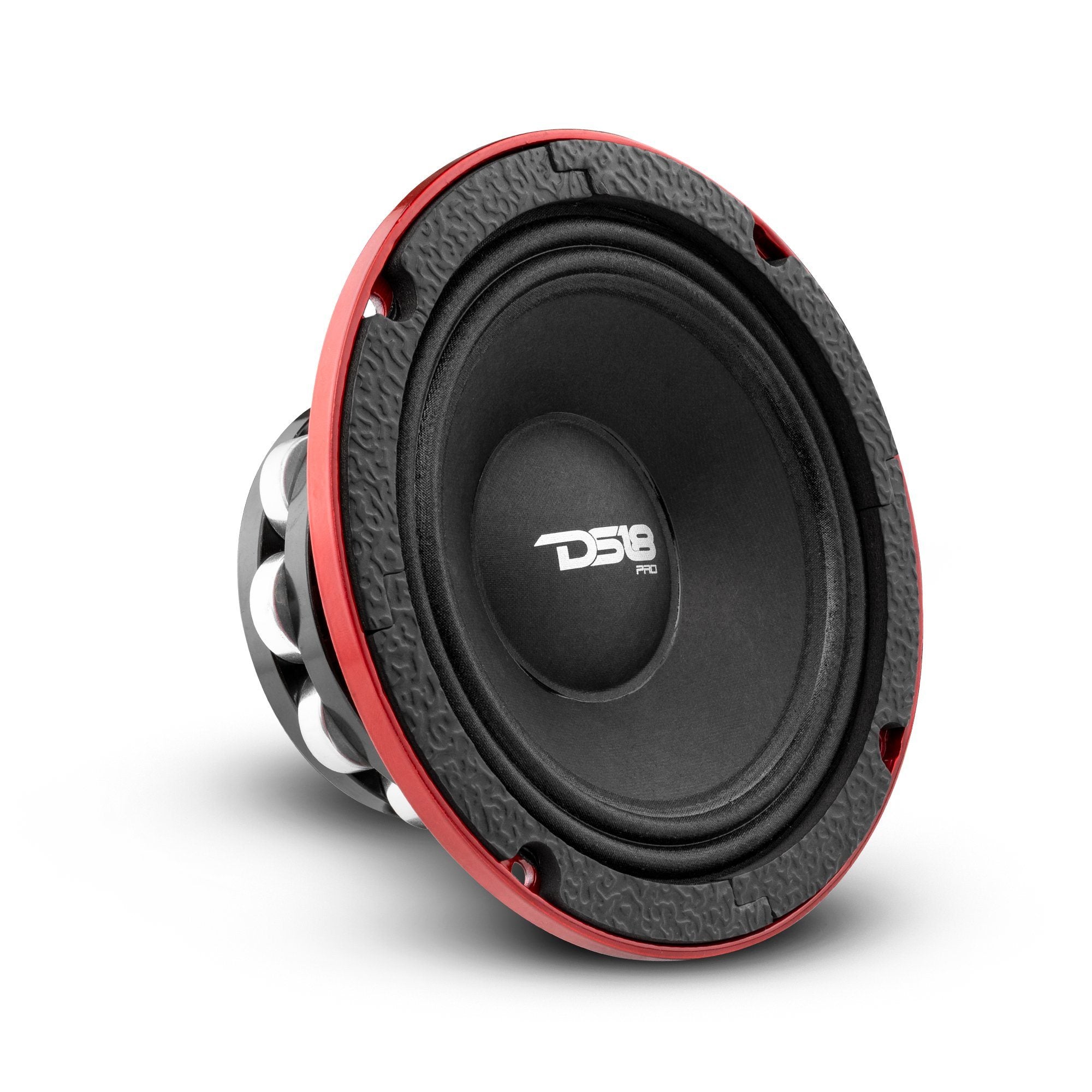

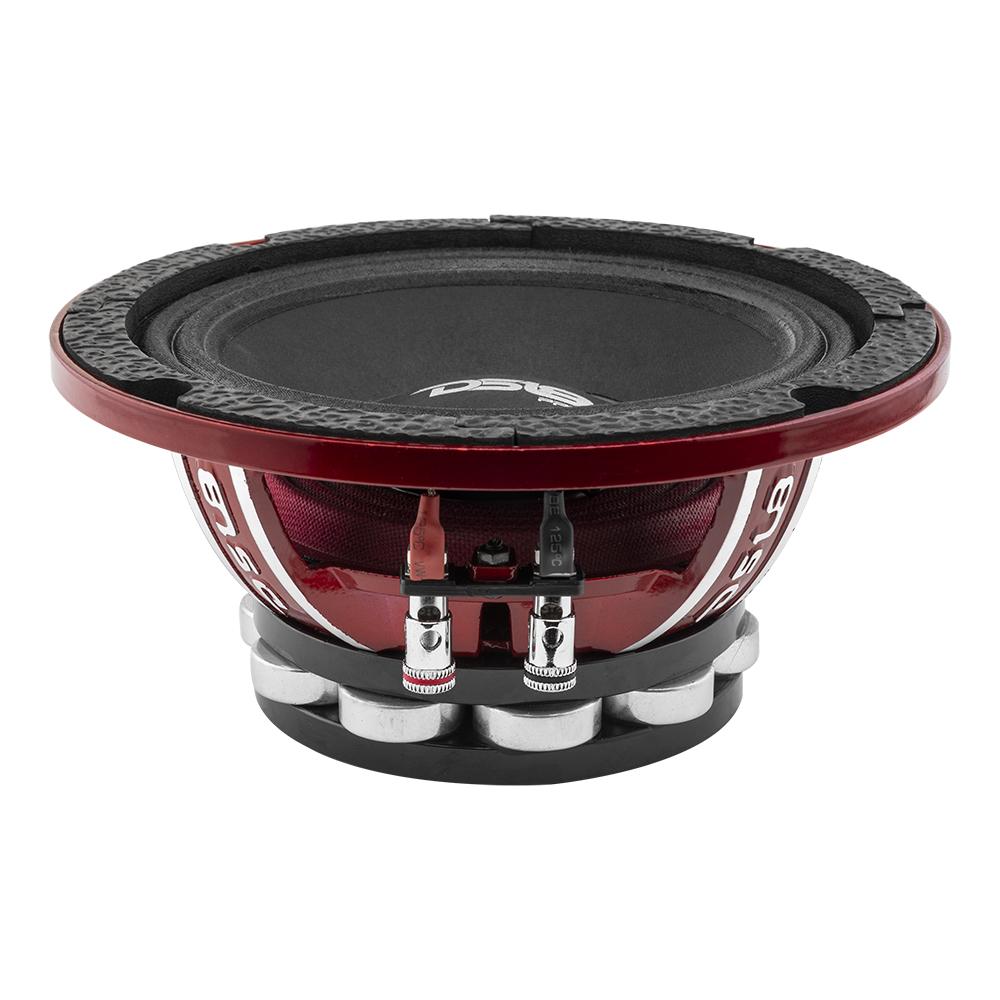

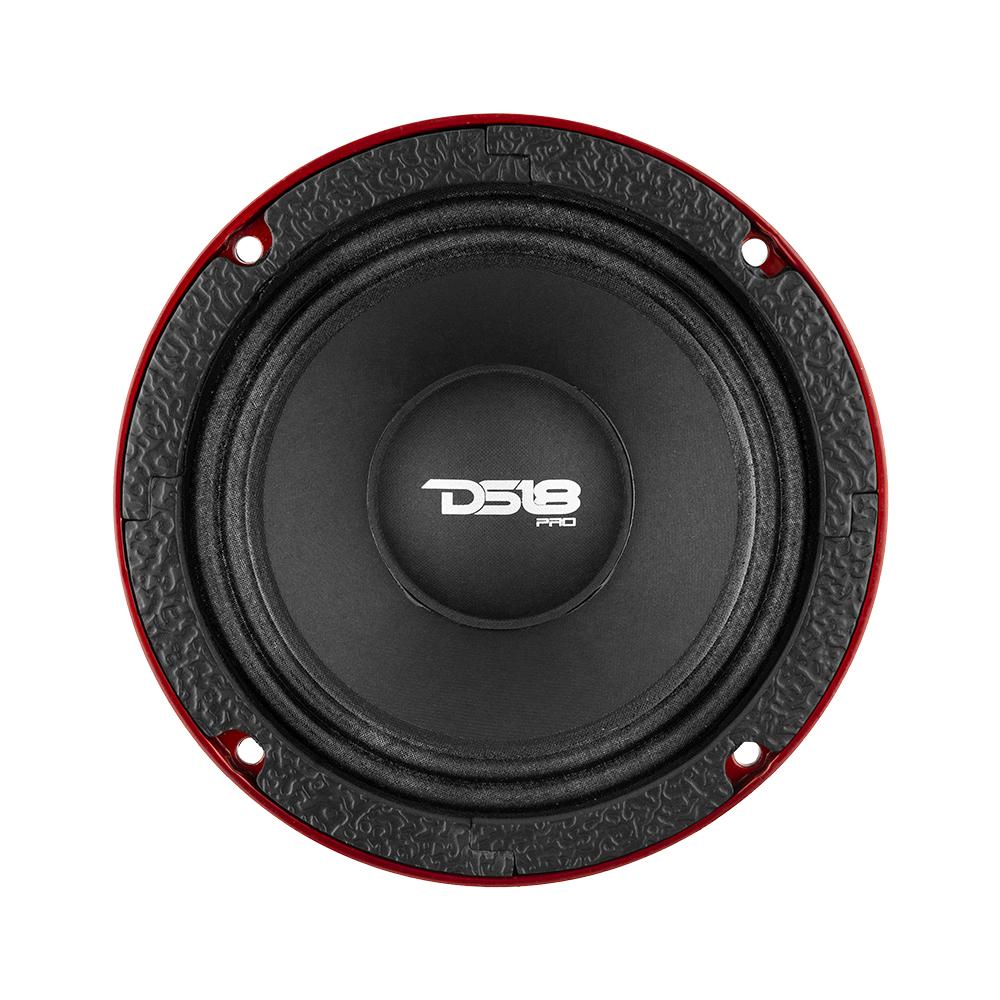

DS18 PRO-NEO6.8R 6.5" Neodymium Mid-Range Loudspeaker 600 Watts 8-Ohm

Versatility is paramount in large and small audio systems alike. Many DS18 fans have been wanting an 8 ohms version of our very popular NEO-R series of 6.5s. We have obliged the overwhelming requests by releasing our PRO-NEO6.8R. This Neodymium driven midrange speaker will be the loudest 6.5 we have while also handling the most power. The great thing about NEO motor structures is that you get better performance, higher wattage handing, better efficiency, and much lighter in weight than a traditional speaker with a ferrite motor structure.

This is an 8 ohms speaker that handles 300w RMS and 600w MAX power with a dB sensitivity rating of 96dB. This neo also has an amazing cone design to help this screaming midrange all the way from 90Hz to 10,000Hz with extreme clarity and loudness.

Highlights

  • Neodymium motor structure that handles more power, lighter, and more efficient than ferrite motors.
  • High RMS rating of 300w RMS and 600w MAX @8 ohms so you can have a very high powered 6.5 to blow away the competition.
  • High decibel rating so it does not take max power to get the fullest sound.
  • High powered aluminum voice coil backed by an intense neodymium rings magnet for more volume at the highest efficiency on the market.
  • Beautiful DS18 design including a DS18 Tooled aluminum brushed accented basket and high quality terminals.
  • Solid cone design that slays the midrange but is best accompanied by a pro audio super tweeter

neodymium rings mid-range loudspeakers 600 wattsneodymium rings mid-range loudspeakers 600 wattsneodymium rings mid-range loudspeakers 600 wattsneodymium rings mid-range loudspeakers 600 wattsneodymium rings mid-range loudspeakers 600 watts

Technical Details
                                                         PRO-NEO6.8R Product Manual

SPECIFICATIONS
Nominal Diameter 6.5” / 165mm
Nominal Impedance 8 Ohms
RMS Power Handling 300W
MAX Power Handling 600W
Sensitivity (1w/1m) 96 dB
Frequency Response 90Hz-10KHz
Recommended Hi Pass Crossover 160 Hz
Pair or Single Single
MOTOR
Voice Coil Diameter 2"/50.8mm
VC Former Material Kapton
Winding Material CCAW
Cone Material Paper
Dust Cap Material Paper
Surround Material Cloth
Basket Material Aluminum
Basket Color/Finish Glossy Red
Magnet Material Neodymium Rings
Magnet Weight 11.4 Oz
Displacement Volume 0.045 L
THIELE & SMALL PARAMETERS
Equivalent Volume 6.498 Ltr
Excursion (one way) 3.6mm
Free Air Resonance 83 Hz
Mechanical Factor 4.4
Electrical Factor 0.229
Total Factor 0.218
Mechanical Mass 13.248
Mechanical Compliance 276.373 u/M/N
BL Factor 13.466
Cone Area 145cm²
DC Resistance 6.0 ohm
Mechanical Mass w/o air 12.638 g
MEASUREMENTS
Overall Diameter 6.88” / 174.8mm
Overall Depth 3.29” / 83.7mm
Front Mount Baffle Cutout 5.91” / 150.3mm
Mounting Depth 3.29” / 83.7mm
Motor Diameter 4.13” / 105mm
