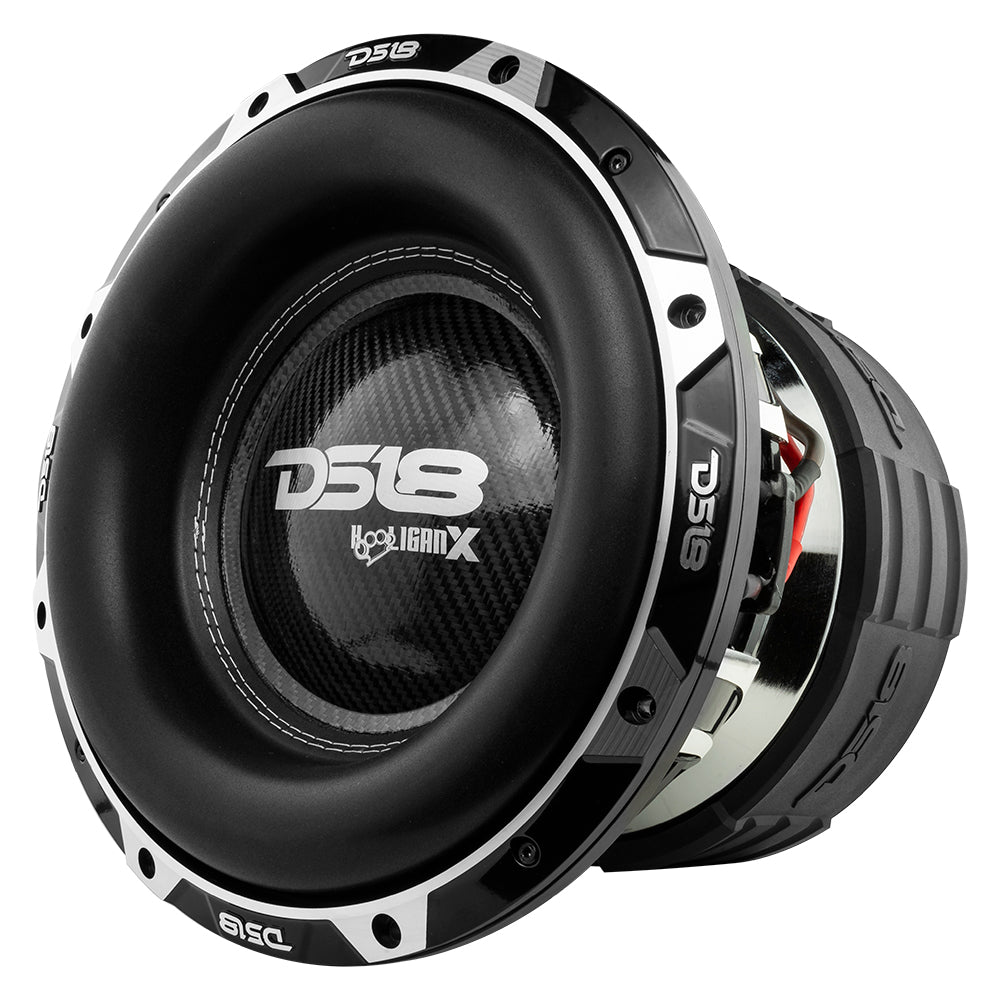

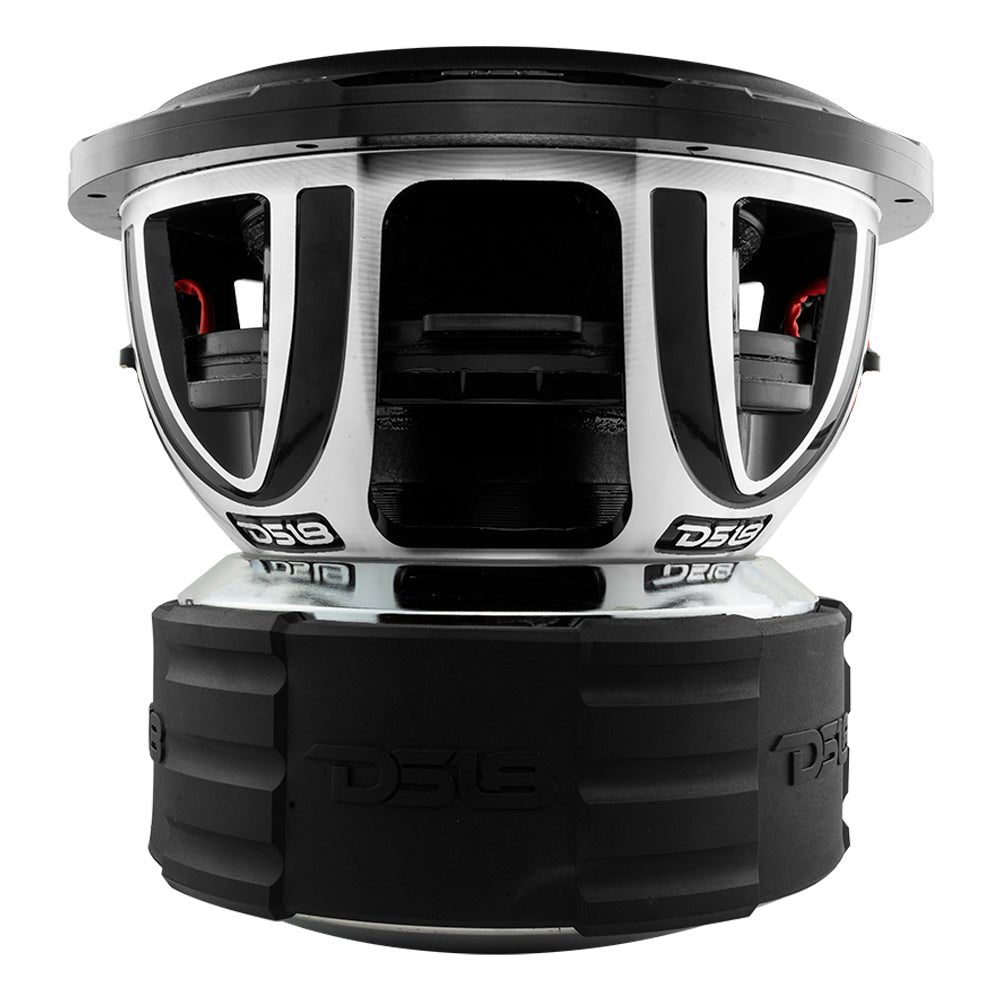

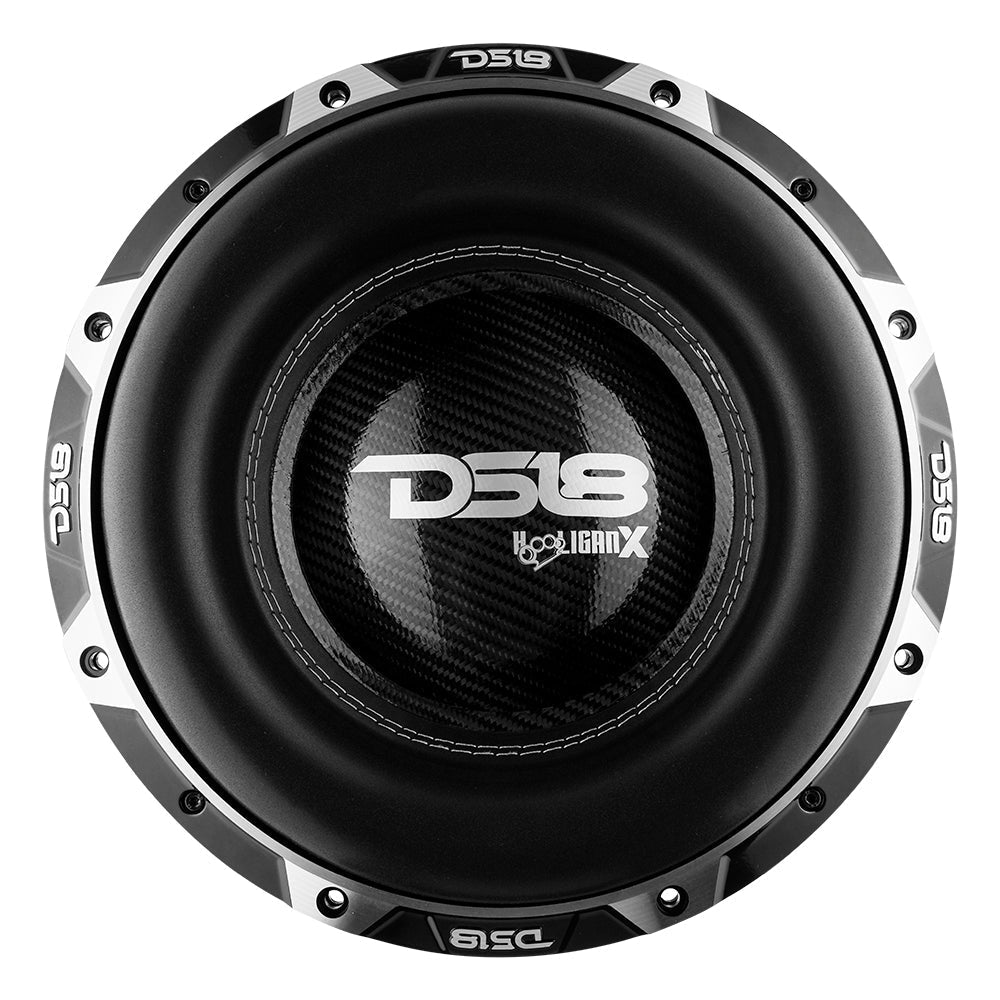

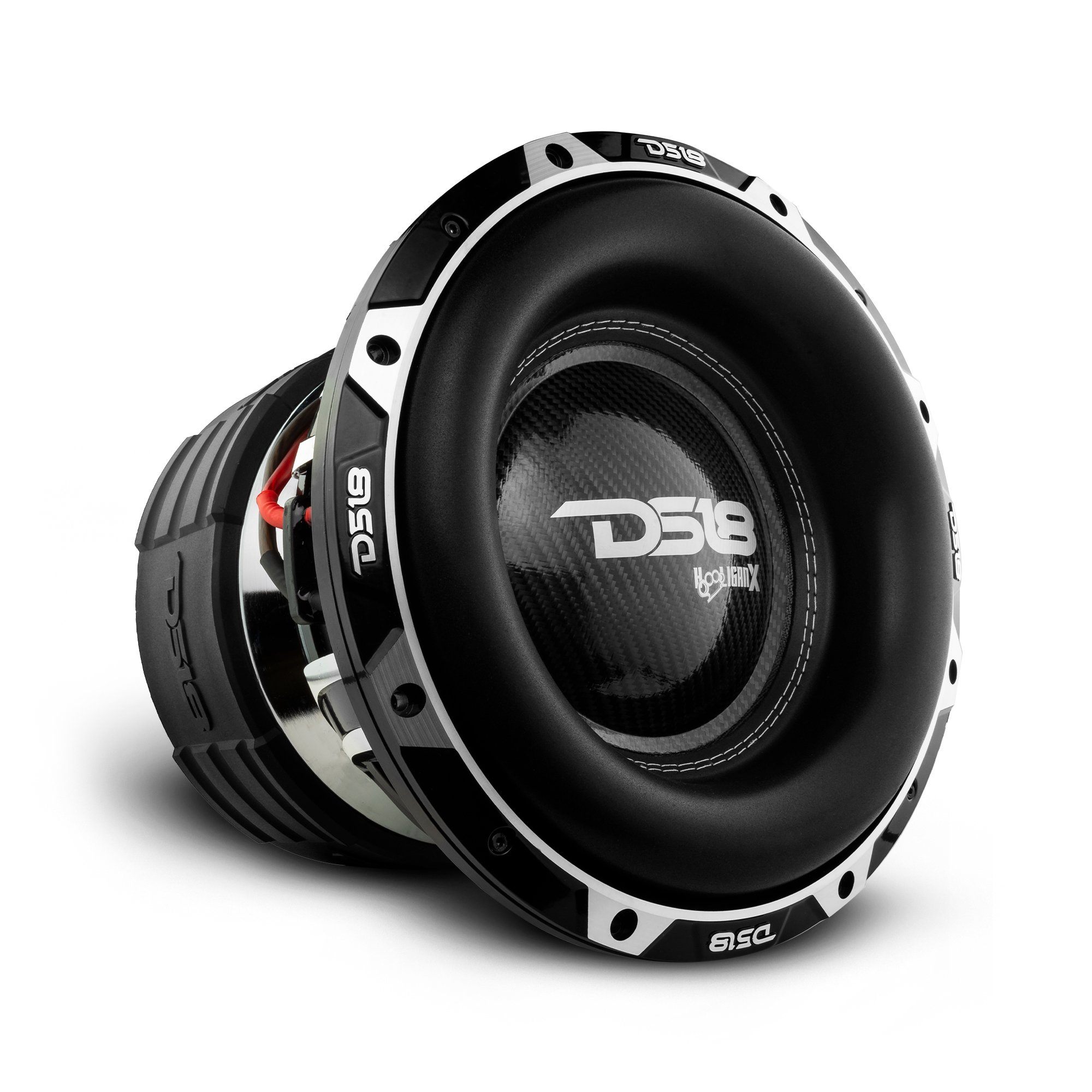

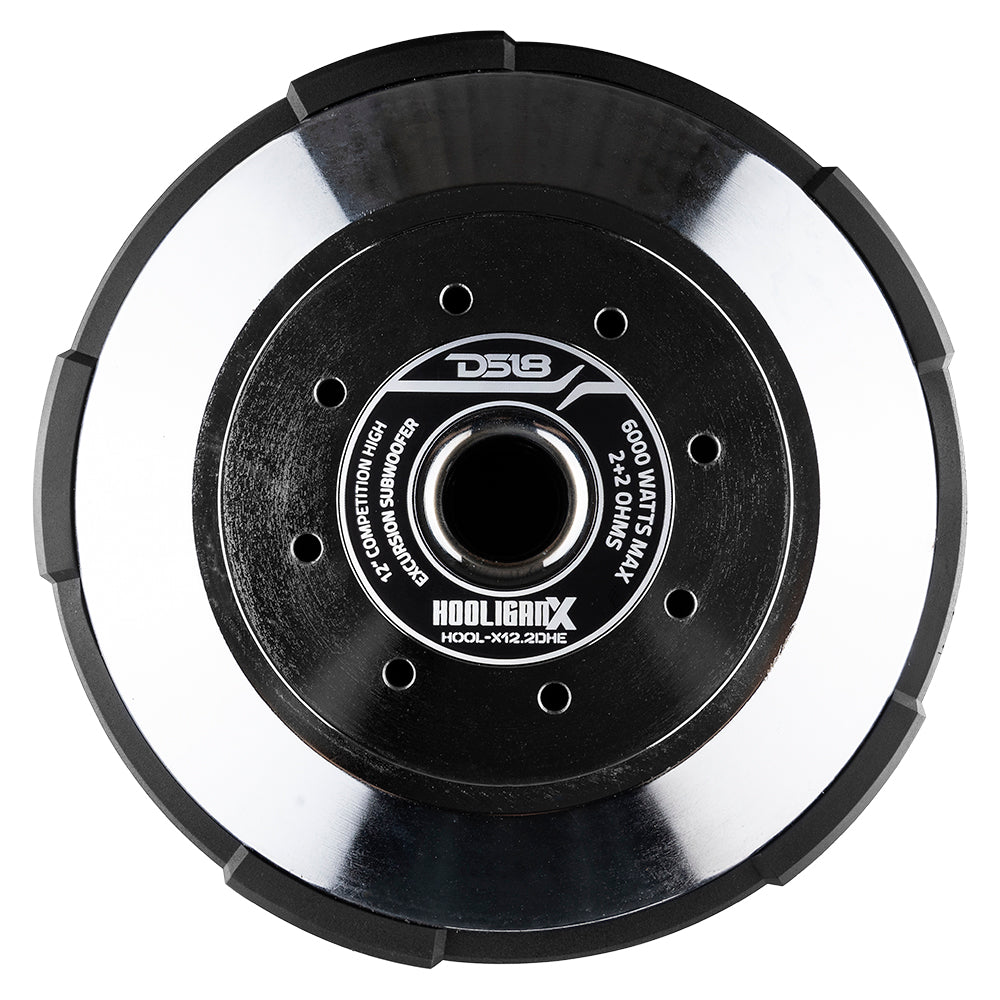

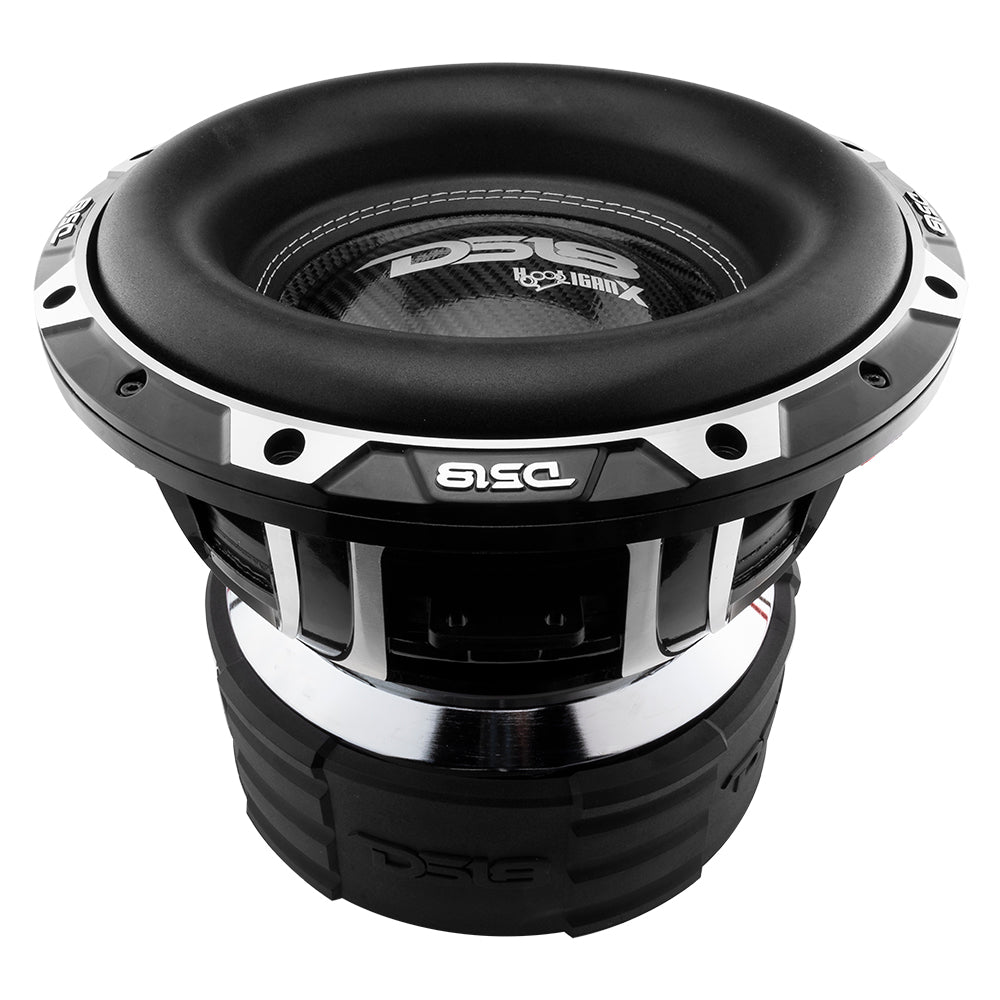

HOOLIGAN X 12" High Excursion Subwoofer 4000 Watts Rms 4" DVC 2-Ohm

DS18 HOOL-X12.2DHE HOOLIGAN 12" High Excursion Car Subwoofer 4000 Watts Rms 4" Dvc 2-Ohm

The DS18 Hooligan X12 has already been proven to provide top end performance and bass now for multiple years on the streets and in the lanes, hooligans have been a choice of music lovers and competitors alike.

We have taken the Traditional Hooligan and revamped it in our newest revision, the Hooligan X12 High Excursion subwoofer. This model features long throw pole, larger spider, and high excursion surround to lower the FS of the speaker making it louder at subsonic frequencies. This massive sub will be great for high powered music or SPL. A FS of 26 will ensure deep lows down to 20Hz and great punchy bass up around 40Hz depending on your box tuning. This subwoofer is rated at 4000w RMS and 6000w max so your vehicle will require electrical upgrades and large wire.

This sub will be friendly to 4th orders, 6th orders, ported boxes, and large sealed boxes and can be used in most applications that has room for the box. With a 59mm one way XMAX, this sub is sure to pump out extreme decibils with the proper power and box setup. We recommend a tuning of 25-35Hz for ported boxes depending on your goals.

If you are looking for extreme bass and massive power look no further than the Hooligan High Excursion line! This Hooligan variant will be sure to start you on your way to high volume hairtricks and massive lows!

Highlights

• High powered 4" Black Aluminum voice coil handling 4000w RMS and 6000w Max power for heavy hitting competition bass.
• We have added a large high excursion surround to help with the high pole to pole flex this subwoofer has giving it has a 59mm one way xmax!
• We have also added a larger spider that helps lower the FS (Resonant Frequency) so this sub plays lower much louder than previous versions.
• 4 inch black aluminum voice coil handling a massive 4000w RMS and 6000w Peak will be sure to get this subwoofer moving with hurricane wind forces.
• The DS18 Tooled Black basket is one of the slickest and best looking baskets on the market. Not only extremely strong but looks great so you can use plexiglass or mount inverted on your box to see the show quality frame and motor topped off by a carbon fiber dustcap.
• Huge 500 oz magnet will help the voice coil receive and handle the massive power this sub requires with high efficiency and durability.

Technical Details

                 HOOL-X12.2DHE Product Manual

SPECIFICATIONS
Nominal Diameter	12" / 304.8 mm
Nominal Impedance	2 + 2 Ohms
RMS Power Handling	4000 Watts
MAX Power Handling	6000 Watts
Sensitivity (1w/1m )	87 dB
Frequency Response	20Hz - 500Hz
Recommended Lo Pass Crossover	80 Hz
MOTOR
Voice Coil Diameter	4” / 99.8 mm
Voice Coil Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Non Pressed Paper
Dust Cap Material	Carbon Fiber
Surround Material	Foam
Basket Material	Aluminum
Basket Color | Finish	Glossy Black with Machined Aluminum
Magnet Material	Ferrite
Magnet Weight	500 Oz
Displacement Volume	4.8L / 0.169ft3
THIELE & SMALL PARAMETERS
Equivalent Volume	22.57 L / 0.79 ft3
Excursion (one way)	50 mm
Free Air Resonance	26 Hz
Mechanical Factor	2.778
Electrical Factor	0.489
Total Factor	0.462
Moving Mass	512.12 g
Compliance	0.072 mm/N
Bl Factor	24.27
Voice Coil Inductance	42.29 mH
Diaphragm Area	471.44 cm2
DC Resistance	1.8+1.8 OHM
Efficiency Bandwidth Product	53.1
RECOMMENDED ENCLOSURES
Sealed Internal Volume	17L / 0.6 ft3
Sealed Box Output Response	41 Hz
Ported Internal Volume	42.5L / 1.5 ft3
Port Size *Square (WxHxL)	1.52" x 12.28" x 31.82"
Port Tunning Frequency	30 Hz
Ported Box Output Response	25 Hz
MEASUREMENT
Overall Diameter	12.64”
Overall Depth	11.6”
Front Mount Baffle Cutout	11.2”
Mounting Depth	10”
Motor Diameter	9.96"
