GEN-XX 10" High Excursion Subwoofer Double Stacked Magnets 500 Watts Rms DVC 4-Ohm

DS18 GEN-XX10.4DHE X 10" High Excursion Car Subwoofer 1000 Watts 4-Ohm DVC Double Magnet High excursion is...
Vendor: DS18
SKU: GEN-XX10.4DHE
Availability: Out Of Stock
Product type: Car Audio : Subwoofer
$164.95
$164.95
Please hurry! Only 0 left in stock
Subtotal: $164.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

GEN-XX 10" High Excursion Subwoofer Double Stacked Magnets 500 Watts Rms DVC  4-Ohm

GEN-XX 10" High Excursion Subwoofer Double Stacked Magnets 500 Watts Rms DVC 4-Ohm

$164.95

GEN-XX 10" High Excursion Subwoofer Double Stacked Magnets 500 Watts Rms DVC 4-Ohm

$164.95

DS18 GEN-XX10.4DHE X 10" High Excursion Car Subwoofer
1000 Watts 4-Ohm DVC Double Magnet

High excursion is now the mainstream and usually this feature is very expensive, and enthusiasts sometimes miss out on amazing bass because of the large cost. We want to bring the experience of low frequency bass to even the entry level user. The GEN-XX10.4DHE is the answer to that issue. This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 500w RMS and 1000w Max this sub does not require large amounts of power to come alive and beat up the block.

Highlights

  • High Excursion surround for a very high amount of xmax.
  • Great power handling of 500w RMS and 1000w max.
  • Long three voice coil and extended magnet to accommodate the xmax increase.
  • FS of 37.6 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.


Technical Details
Nominal Diameter 10
Nominal Impedance 4+4 ohms
RMS Power Handling 500W
MAX Power Handling 1000W
Sensitivity (1w/1m) 84.6 dB
Frequency Response 20Hz - 1.1KHz
Recommended Lo Pass Crossover 90Hz
Motor:
VC Diameter 2
VC Former Material Black Aluminum
Winding Material SV
Cone Material Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 136 Oz
Displacement Volume 1.82L
Thiele & Small Parameters
Equivalent Vol Vas 16.583L
Excursion (one way) Xmax 25 mm
Free Air Resonance Fs 37.6 Hz
Mechanical Factor Qms 4.705
Electrical Factor Qes 0.476
Total Factor Qts 0.432
Moving Mass Mms 166.794g
Compliance Cms 0.107mm/N
Bl Factor BL 23.041N/A
VC Inductance Le 0.6741mH
Diaphragm Area Sd 330.64cm2
Dc Resistance Re 3.2+3.2 ohms
Efficiency Bandwidth Product EBP 78.99

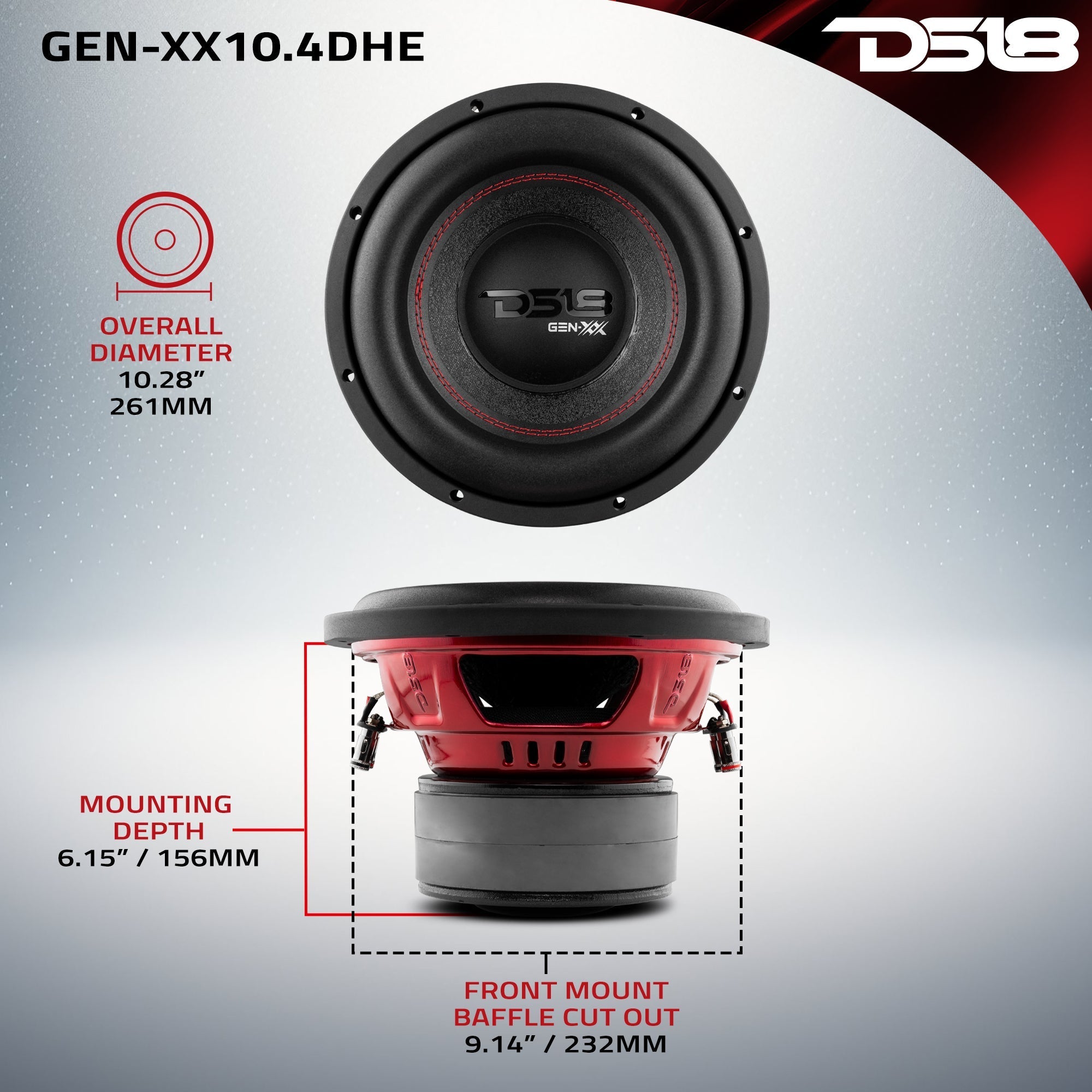

Measurements
Overall Diameter 10.28 / 261 mm
Overall Depth 7.21 / 183 mm
Front Mount Baffle Cutout 9.14 / 232 mm
Mounting Depth 6.15 / 156mm
Motor Diameter 6.15 / 156mm
