GEN-X Full-Range Class D 4-Channel Amplifier | 4 x 150W RMS @ 4-Ohm
DS18 G1800.4D Full-Range Class D 4-Channel Car Audio Amplifier 1800 Watts The Gen-X series has always been...
- $279.95
- $279.95
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$279.95
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on select products

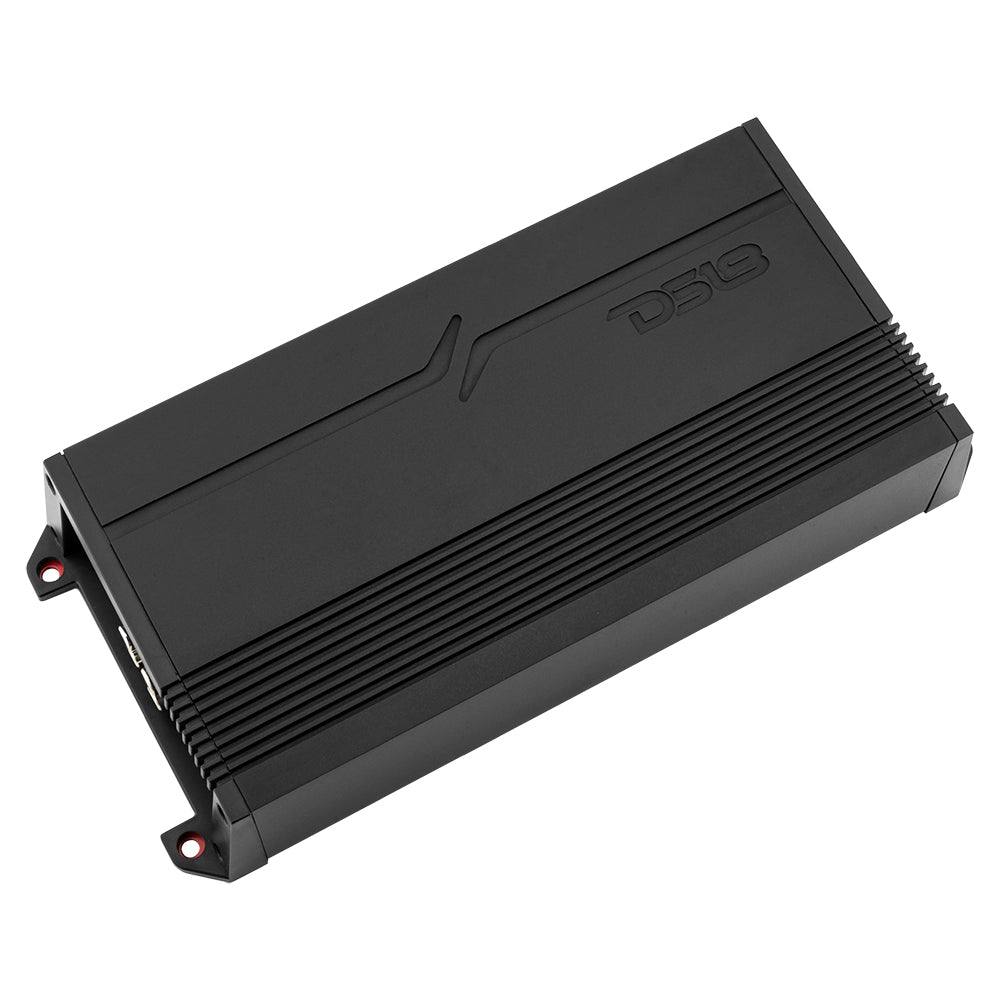

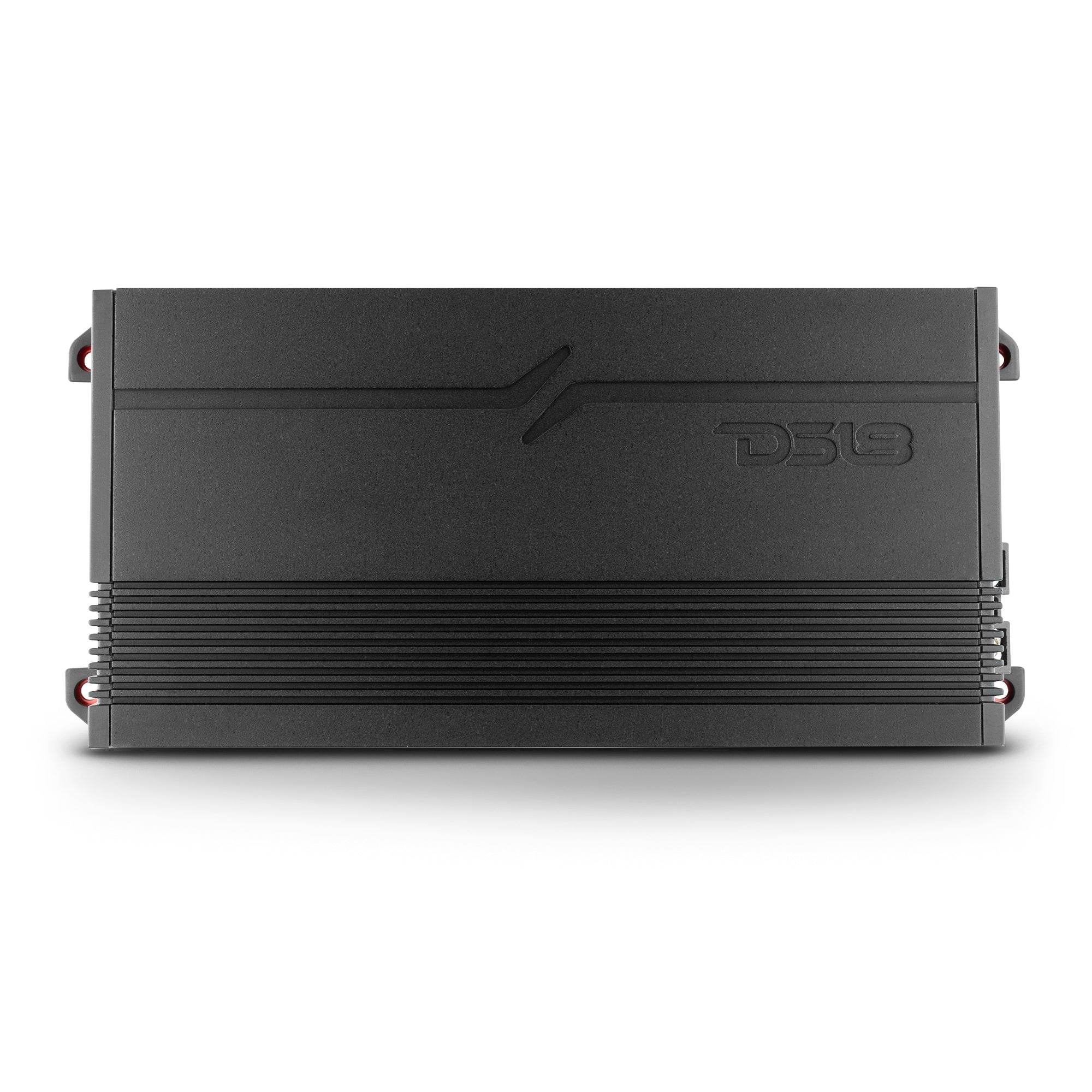

DS18 G1800.4D Full-Range Class D 4-Channel Car Audio Amplifier 1800 Watts
The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released.
We have completely redesigned the GEN-X series from the ground up to meet and audio enthusiasts high standards and complete their goals for the system of their dreams with great power, reliability, and efficiency.
The G1800.4D has a power rating of 4 x 150 watts RMS at 4 ohms 4 x 230 watts RMS at 2 ohms, 2 x 430 watts at 4 ohm bridge, and 1800 watts MAX at the ohm load it was designed for, giving you pure and clean power on demand.
This amp has the power to drive your speakers but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud.
Highlights
- Small and powerful design so you can power your subs with great efficiency and power without taking up much space
- Integrated low pass and high pass filter to help you get the perfect response you are looking for.

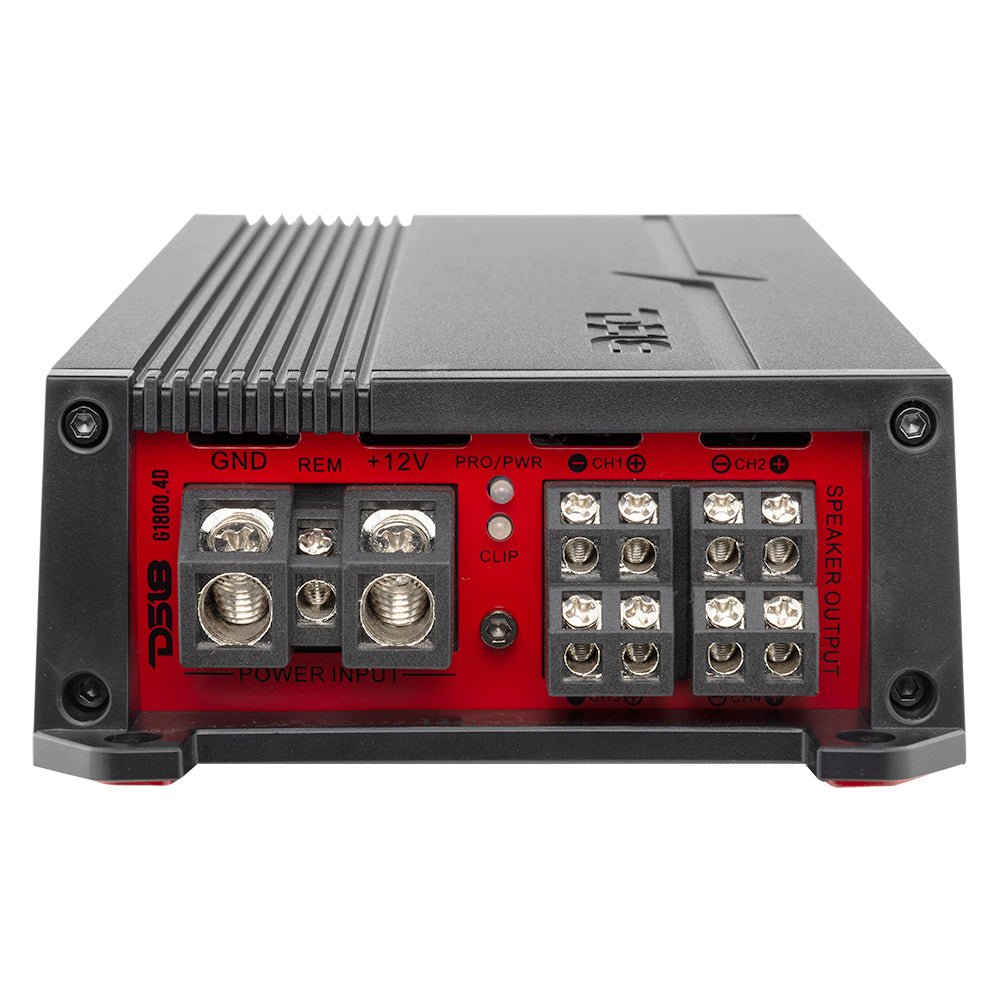

- High quality terminals that look great and will transfer your power and signal with no loss.
Key Features
- Digital Class D 4 Channel Amplifier
- MAX Wattage: 1800w Peak
- RMS Wattage: 2 x 430 Watts RMS @ 4 ohm bridge, 4 x 230 Watts RMS @ 2 ohms, 4 x 150 Watts RMS @ 4 ohms
- Frequency Response: 20-20KHz
- Signal to Noise Ratio: >90dB
- Efficiency at 4 ohms: 81%
- Total Harmonic Distortion: 0.01%
- Input Range: .25-6v
- Selectable X-over: LPF, HPF. Flat
- Phase: 0-180
- Power and Ground Terminal: 4 GA
- Minimum Impedance: 2 ohm
Great For:
- Car Audio
- Pro Audio
- Motorcycles
- Hi-Fi installation
- Off-Road
- DIY Projects
Technical Details
| Specifications | |
| POWER | |
| Total Watts (Peak) | 1800W |
| RMS Power @ 4 ohm | 4 x 150W |
| RMS Power @ 2 ohm | 4 x 230W |
| RMS Power @ 4 ohm Bridge | 2 x 430W |
| AUDIO | |
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4ohm | 81% |
| Damping Factor | 78 |
| Input Impedance | 22K |
| Channel Separation | 70dB |
| Total Harmonic Distortion (THD) | 0.01% |
| Low Level Input Range | 0.25-6V |
| High Level Input | NO |
| Selectable X-Over | LPF/FLAT/HPF |
| X-Over Filter Range | 50Hz-250Hz |
| Bass Boost Range | N/A |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | N/A |
| Phase Selector | NO |
| FEATURES | |
| Amplifier Class | Digital (D) |
| Amplifier Type | 4CH Full Range |
| Number of Channels | 4CH |
| Minimum Impedance | 2 ohm St / 4 ohm Bridge |
| Led Indicator | Power / Protection / Clip |
| Power Input Terminal Size | 4 ga |
| Fuse Size | 2 X 40A |
| Remote Level Control | NO |
| Cooling Fan | NO |
| Voltmeter | NO |
| Thermal Protection | YES |
| Over-Load Protection | YES |
| DC Output Protection | YES |
| Short Circuit Output Protection | YES |
| Voltage Input Protection | YES |
| Clipping Protection | YES |
| Body Color / Finish | Matte black |
| MEASUREMENT | |
| Overall Length | 10.43" / 265mm |
| Overall Wide | 4.72" / 120mm |
| Overall Height | 1.96" / 50mm |
| Heatsink Length | 8.58" / 218mm |
| Gross Single Unit Weight | 1.6KG |
