DX 6.5" 3- Way Neodymium Component Speaker System With Carbon Fiber Cone 290 Watts Rms 4-Ohm

DS18 DX3N Carbon Fiber 6.5” 3 Way Neodymium Premium Quality Car Component Speaker System 580 Watts 4-Ohm...
Vendor: DS18
SKU: DX3N
Availability: Out Of Stock
Product type: Car Audio : Components
$1,079.95
$1,079.95
Please hurry! Only 0 left in stock
Subtotal: $1,079.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

DX 6.5" 3- Way Neodymium Component Speaker System With Carbon Fiber Cone 290 Watts Rms 4-Ohm

DX 6.5" 3- Way Neodymium Component Speaker System With Carbon Fiber Cone 290 Watts Rms 4-Ohm

$1,079.95

DX 6.5" 3- Way Neodymium Component Speaker System With Carbon Fiber Cone 290 Watts Rms 4-Ohm

$1,079.95

DS18 DX3N Carbon Fiber 6.5” 3 Way Neodymium Premium Quality Car Component Speaker System 580 Watts 4-Ohm

DS18 Gold line has been developed with the audiophile in mind. An amazing line of component sets that utilize higher grade materials, components and engineering without breaking the bank.

This set includes a pair of each DX3NW 6.5" woofer, DX3NM 3.5" midrange speaker, DX3NT 1.18" tweeter and, DX3NC passive 3-way crossover. The DX3NW has a 6.5" carbon fiber cone that has a precisely machined aluminum basket. The neo motor plays clear low end signal from 50Hz to 12KHz with a 4 ohms impedance. To fill in the DX3NM 3.5" midrange 4 ohm, adds depth and presence to strings and vocals. The DX3NT tweeter, also at 4 ohms uses a neodymium magnet to add shine and brightness to the overall sound quality.

The final piece of this set is the DX3NC 3-way passive crossover which accurately separates wattage and frequencies.

Highlights

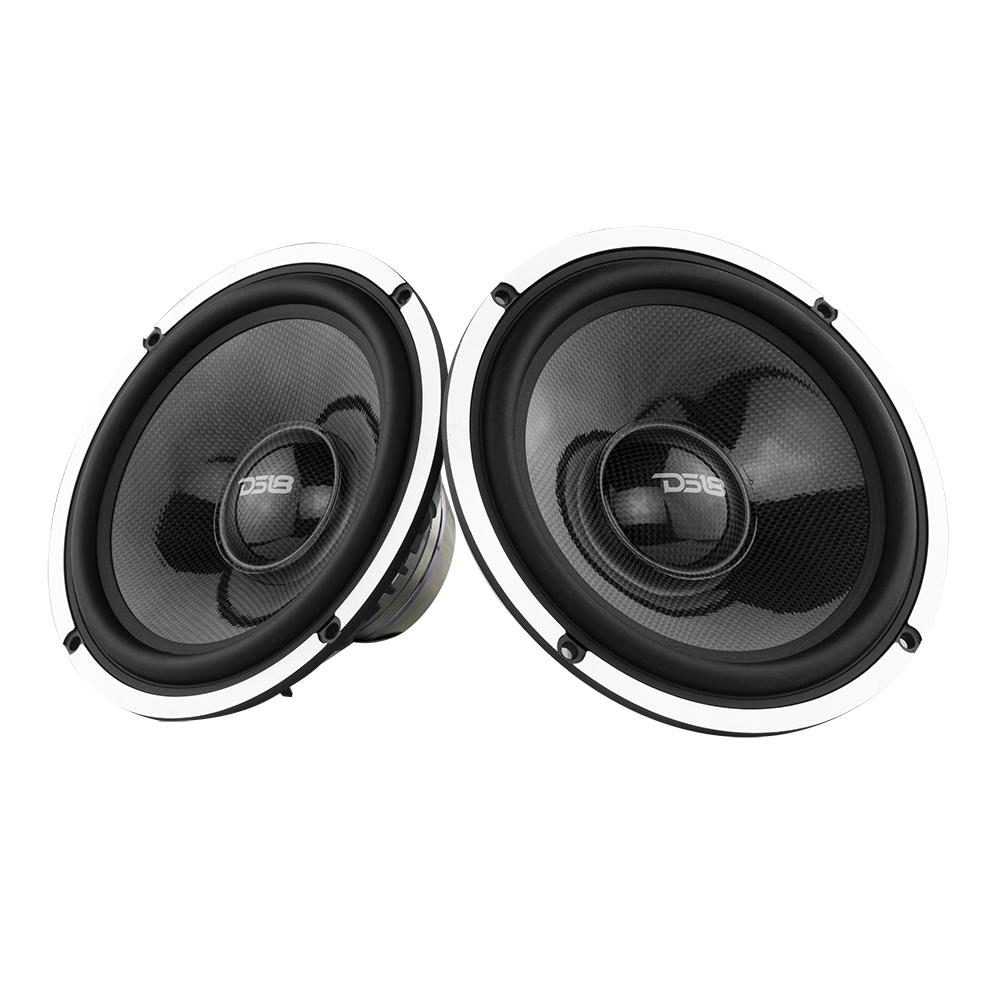

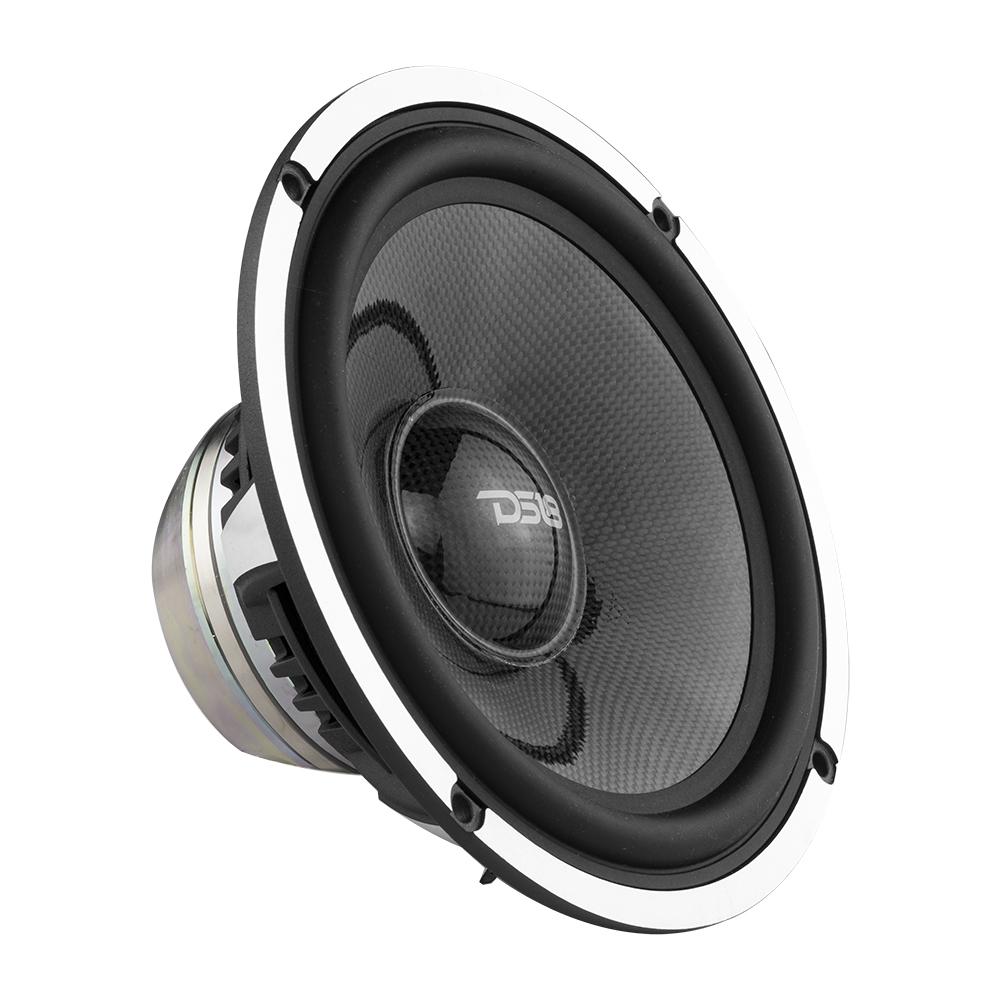

  • DX3NW 6.5" woofer which handles 100w AES. Featuring a carbon fiber cone, machined aluminum basket, and high quality terminals.

  • DX3NM 3.5" midrange will clearly define any mids and vocals needed through precise filtering.
  • DX3NT 1.18" high fidelity tweeter, that is easy to mount and will complete your HQ full range experience.

  • DX3NC 3-way passive crossover with multiple dB selections so you can be sure to get distortion free HQ sound accurately routed to the proper speaker with ease.

  • Neodymium motor structure which handles more power and also handles that power more efficiently while also being lighter than traditional ferrite motors.

3 way neodymium car audio sound quality component speaker system

3 way neodymium car audio woofer sound quality component speaker system

3 way neodymium car audio tweeter sound quality component speaker system

3 way neodymium car audio crossover sound quality component speaker system

3 way neodymium car audio midrange sound quality component speaker system

3 way neodymium car audio sound quality component speaker system

Specifications
WOOFER
Nominal Diameter 6.5"
Nominal Impedance 4 Ohms
Peak Power Handling 400W
Program Power Handling 200W
AES Power Handling 100W
Sensitivity (1w/1m) 91 dB
Frequency Response 50Hz-12KHz
Recommended HI Pass Crossover 45 Hz
MOTOR
Voice Coil Diameter 1.4"/35.5 mm
Voice Coil Former Material Kapton
Winding Material SV
Cone Material Carbon Fiber + Resin
Surround Materia Rubber Edge
Basket Materia Aluminum
Magnet Materia Neodymium
Magnet Weight 3.1 oz
Measurements
Overall Diameter 6.49"/165 mm
Front Mount Baffle Cutout 5.62"/143 mm
Mounting Depth 2.81"/71.5 mm
Overall Depth 3.20"/81.5mm
Motor Diameter 3.14"/80mm



MIDRANGE
Nominal Diameter 3.5"
Nominal Impedance 4 Ohms
Peak Power Handling 120W
Program Power Handling 60W
AES Power Handling 30W
Sensitivity (1w/1m) 90 dB
Frequency Response 80Hz-20KHz
Recommended HI Pass Crossover 800 Hz
MOTOR
Voice Coil Diameter 1"/25 mm
Voice Coil Former Material TIL
Winding Material CCAW
Cone Material Carbon Fiber + Resin
Surround Materia Rubber Edge
Basket Materia Aluminum
Magnet Materia Neodymium
Magnet Weight 1.1 oz
Measurements
Overall Diameter 3.6"/91.5 mm
Front Mount Baffle Cutout 3"/77 mm
Mounting Depth 1.5"/38.5 mm
Overall Depth 1.76"/44.9mm
Motor Diameter 2.16"/55mm



TWEETER
Nominal Diameter 1.18"
Nominal Impedance 4 Ohms
Peak Power Handling 60 Watts
Program Power Handling 30 Watts
AES Power Handling 15 Watts
Sensitivity (1w/1m) 95.2 dB
Frequency Response 920Hz-20KHz
Recommended HI Pass Crossover 3.8 KHz
MOTOR
Voice Coil Diameter 0.98"/25mm
Voice Coil Former Material KVC
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Neodymium
Body Material Aluminum

MEASUREMENT
Overall Diameter 2.28" / 58mm
Overall Depth 1"/26 mm
Front Mount Baffle Cutout 1.85" x 47 mm
Mounting Depth 0.65" / 16.5 mm



CROSSOVER
Passive Crossover Ways 3 Ways
Frequency Crossover 800Hz (Mid) 3.8 KHz (Tw)
Power Handling 300 Watts
Cut Off Slope 6dB (Mid) 12dB (Tw)/ Oct
Tweeter Attenuation (+/-) 3dB
FEATURES
Capacitor Type Metac Film
Coil Type Inductor
Terminals Type Screw Terminal
Housing Material ABS
Adjustments Tw Att Switch
Extra Features Spk Phase Switch
MEASUREMENT
Overall Lenth 4.3"/110 mm
Overall Depth 4.3"/110 mm
Overall Heigh 1.37"/35 mm
Manual
