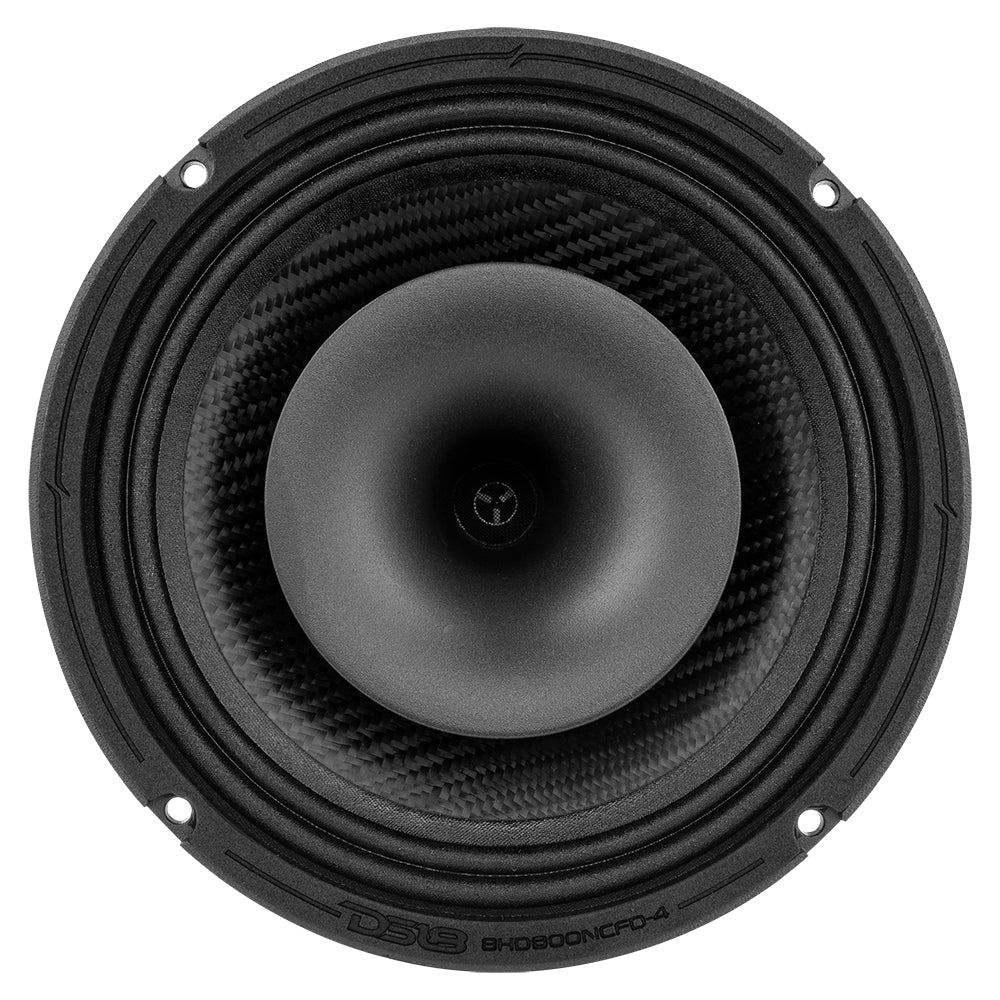

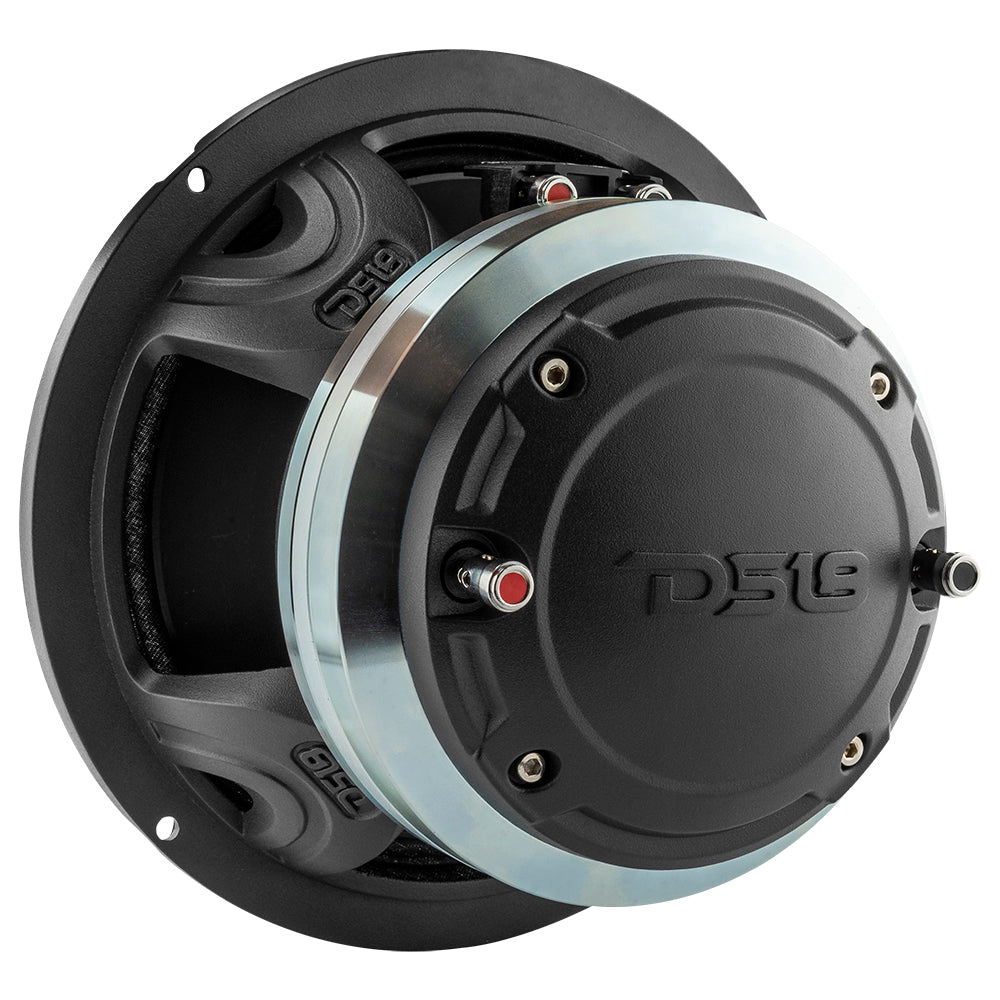

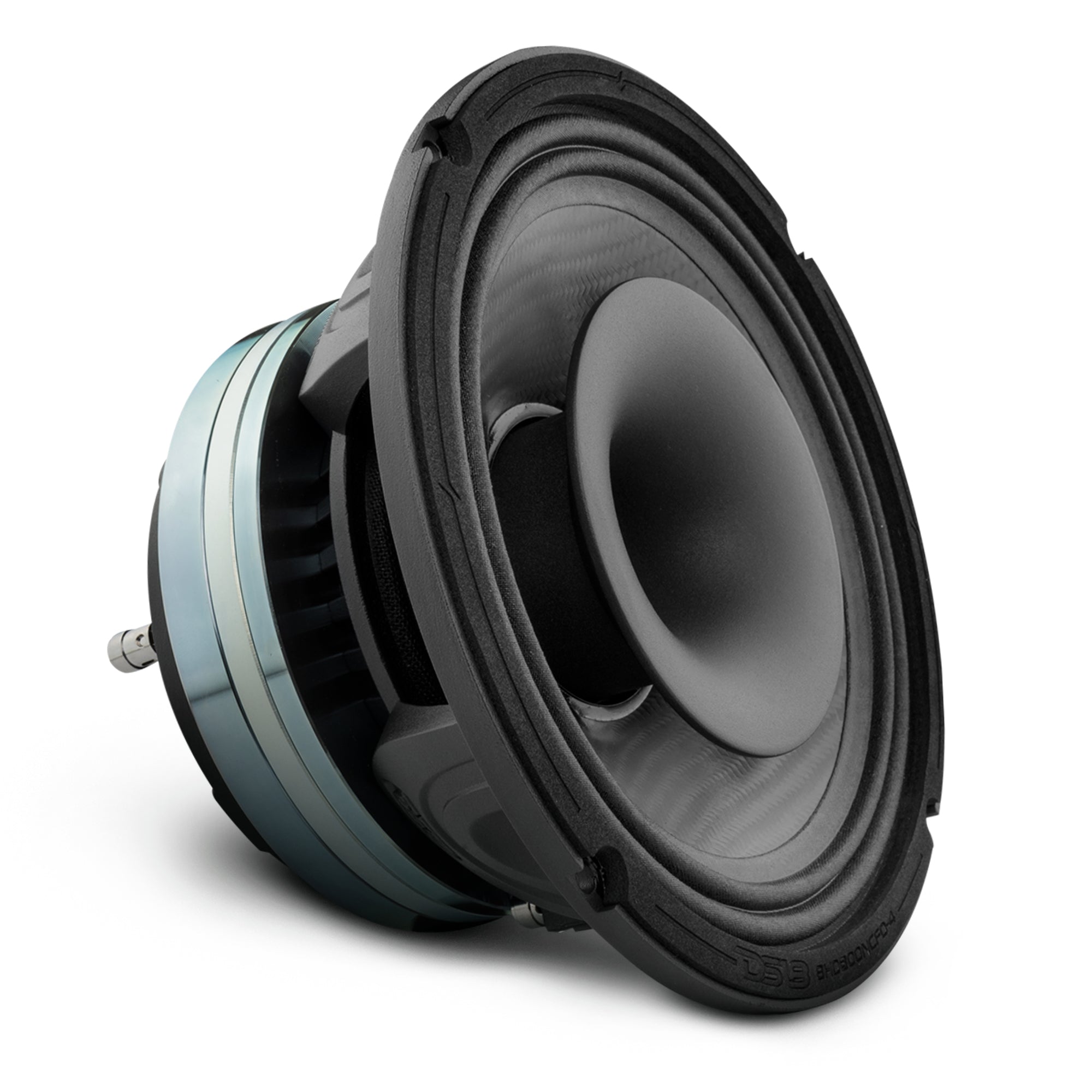

Get intense volume and unmatched durability with DS18’s 8HD800NCFD-4; the newest addition to our line of hybrid loudspeakers with built in compression horn driver!
DS18’s high powered hybrid pro audio speaker combines the extreme volume of our 8” mid-ranges with built-in high wattage compression drivers for the full range of frequencies on every session.
The driver produces the high range frequencies with a much higher intensity that only a pro audio driver can provide! This makes these speakers louder than any coaxial, paired with an insane driver with the vocal power of two. The Driver is backed up by a powerful carbon fiber 8-inch midrange loudspeaker that will for sure fill out the complete frequency range giving you extremely loud Mids, Voice, and Highs with extreme loudness and crystal clarity.

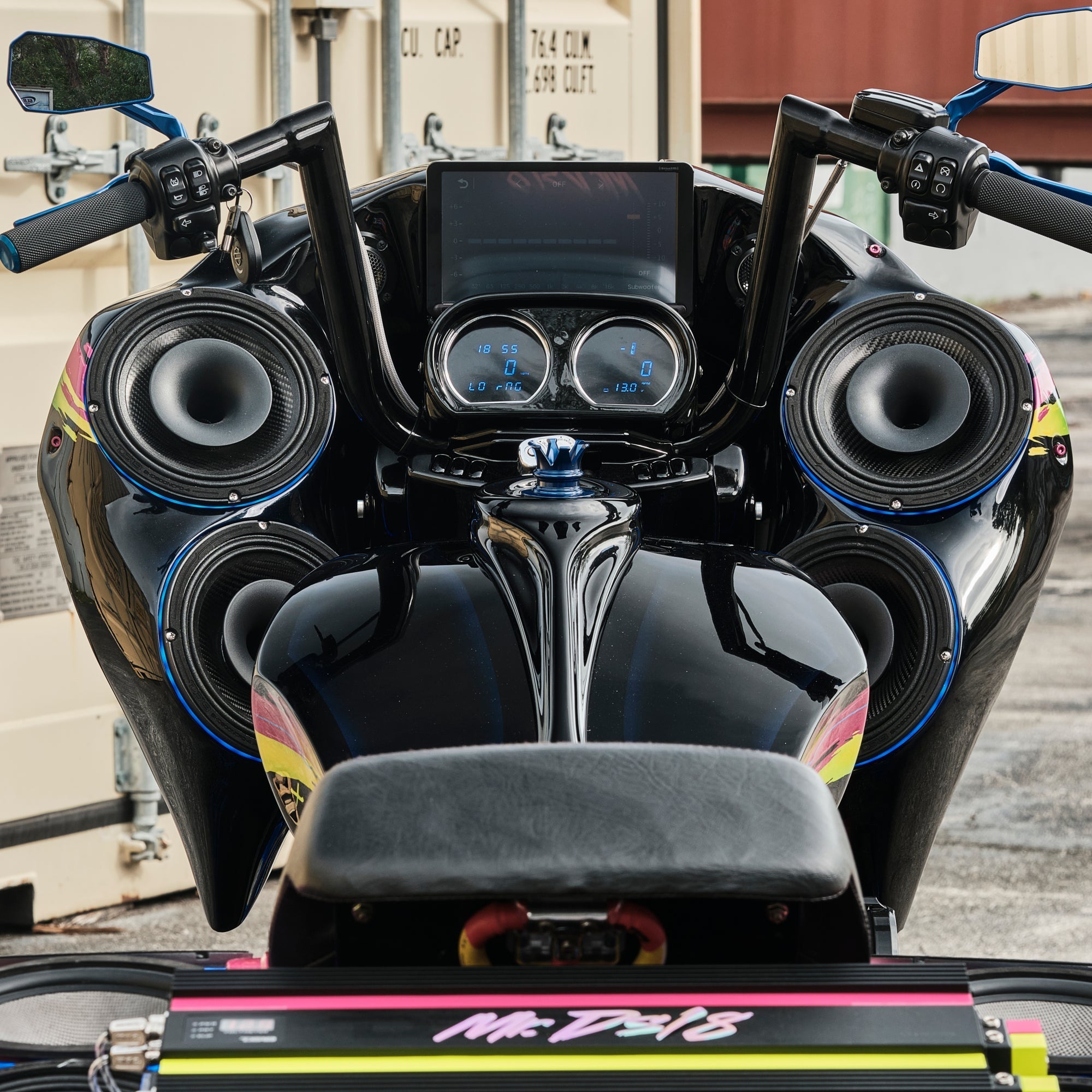

Add these speakers to any build! The water-resistant carbon fiber cone these speakers come equipped with protect them from elemental damage resulting from moisture and allow them to be installed in almost any build!
Get the best of both worlds combined into one pro audio hybrid speaker with the 8HD800NCFD-4!
Highlights
Great For





| GENERAL SPECIFICATIONS | |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance (Woofer / Driver) | 4 Ohms / 8 Ohms |
| RMS Power Handling (Combined) | 400W |
| MAX Power Handling (Combined) | 800W |
| Sensitivity (1w/1m) (Combined) | 105dB |
| Frequency Response (Combined) | 40Hz-20KHz |
| Number of Ways | 2 ways |
| Sold in Pair or Single | Single |
| Grill Included | No |
| WOOFER SPECIFICATIONS | |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 96.5dB |
| Frequency Response | 40Hz-10KHz |
| Recommended Band-Pass Crossover | 80Hz-900Hz |
| Voice Coil Diameter | 2.6" / 66mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCAW |
| Cone Material | Water Resistant Carbon Fiber |
| Surround Material | Treated Cloth |
| Basket Material | Die Cast Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Neodymium |
| Magnet Size | 145x8mm |
| DRIVER SPECIFICATIONS | |
| AES Power handling | 150W |
| Program Power Handling | 300W |
| Sensitivity (1w/1m) | 100.5dB |
| Frequency Response | 315Hz-20KHz |
| Recommended Hi Pass Crossover | 900Hz |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCA |
| Diaphragm Material | Titanium with Polymer Edge |
| Magnet Material | Neodymium |
| Horn Diameter | 4.13" / 105mm |
| SPEAKER MEASUREMENT | |
| Overall Diameter | 8.24" / 209.5mm |
| Overall Depth | 5" / 127.8mm |
| Front Mount Baffle Cutout | 7.2" / 183mm |
| Mounting Depth | 4.63" / 117.8mm |
| Motor Diameter | 5.7" / 145mm |
