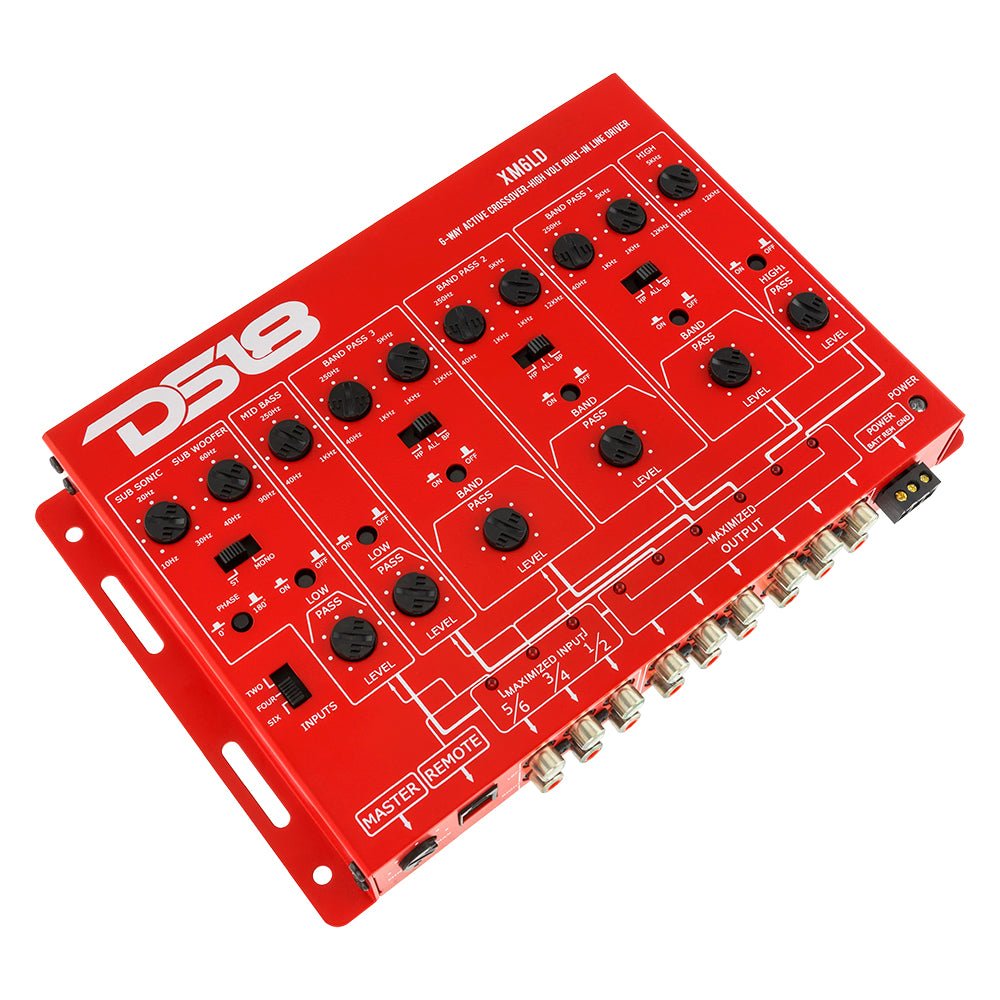

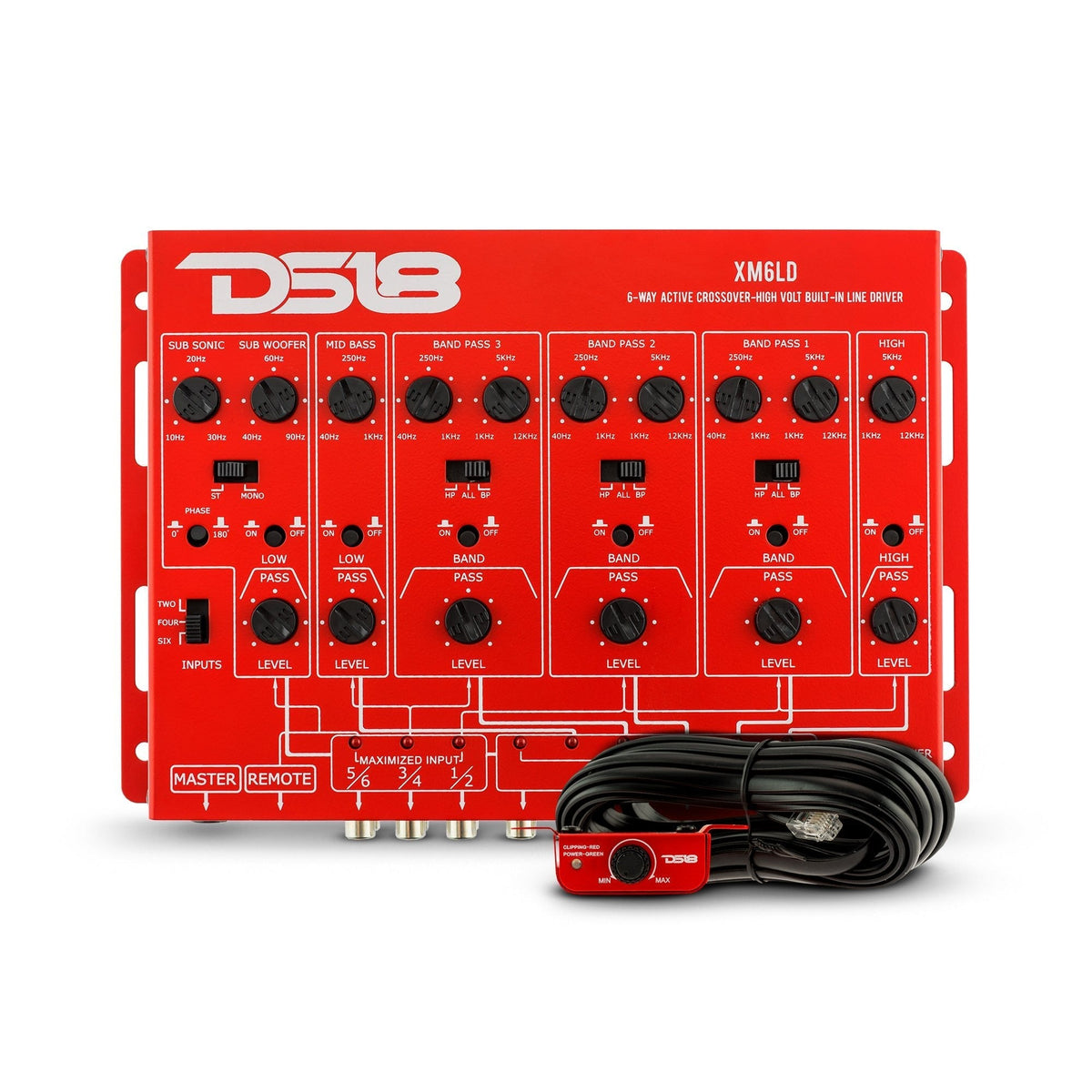

Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic needs. This EQ has 6 separate bands and also line driver options so you can increase your input voltage for a perfect match to your amplifier voltage. Also included is a remote level knob for the bass do you can adjust your subs on the fly. This is what you need if you are tuning a multi amp audio system and finely tunes all aspects of your audio.
| Total Harmonic Distortion @ 1kHz: | 0.04% |
| Signal to Noise Ratio: | >105dB |
| Stereo Separation: | >70dB |
| Current Drain: | 200mA |
| Remote Turn-on Time: | 0.5 Sec |
| Recommended Fuse: | 1A |
| Dimensions (WxDxH): | 1.5"H x 6.5"L x 8.5"W |
| Input Impedance | |
| Front & Rear & Subwoofer: | 22K-Ohms |
| Input Voltage: | 150mV~6V |
| Outputs | |
| Crossover Cut Off Slope: | 12dB/Octave |
| Maximum Output Voltage: | 11.5V |
| Subwoofer | |
| Low Pass Crossover Frequency: | 40~90Hz |
| Subsonic Filter: | 10Hz~30Hz |
| Phase Shift: | 0 to 180 degrees |
| Bass Level Remote Control: | Wired |
| Rear (Mid Bass/Band Bass 3) | |
| Mid Bass: Low Pass Crossover Frequency: | 40Hz ~1KHz |
| Band Pass 3 | |
| High Pass Crossover Frequency: | 40Hz ~1kHz |
| Low Pass Crossover Frequency: | 1KHz~12KHz |
| Front (HIGH/Band Pass1/Band Pass2) | |
| High | |
| High Pass Crossover Frequency: | 1KHz~12KHz |
| Band Pass 1 & Band Pass 2 | |
| High Pass Crossover Frequency: | 40Hz ~1KHz |
| Low Pass Crossover Frequency: | 1KHz~12KHz |
