2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat

DS18 PRO-DKN1XS 2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts...
Vendor: DS18
SKU: PRO-DKN1XS
Availability: Out Of Stock
Product type: Car Audio : Drivers
$129.95
$129.95
Please hurry! Only 0 left in stock
Subtotal: $129.95
10 customers are viewing this product

Free Shipping

Free standard shipping on select products

2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat

2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat

$129.95

2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat

$129.95

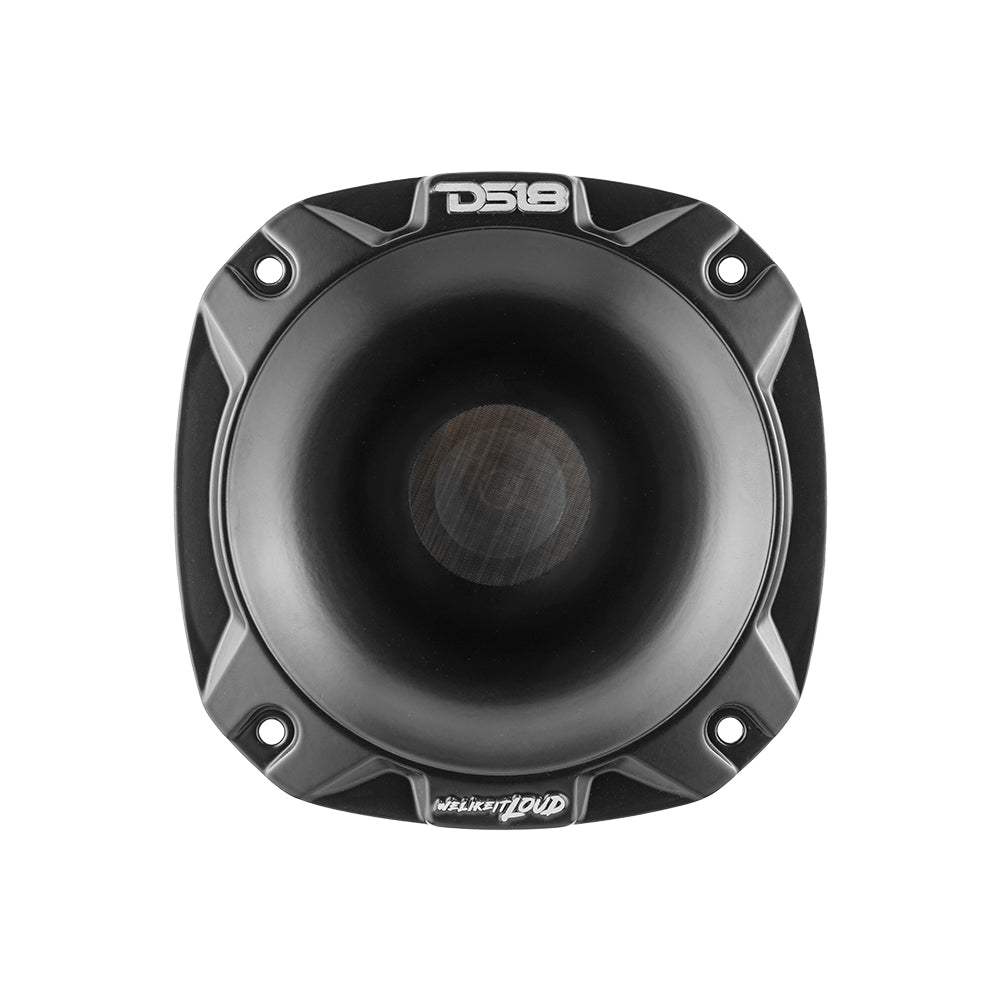

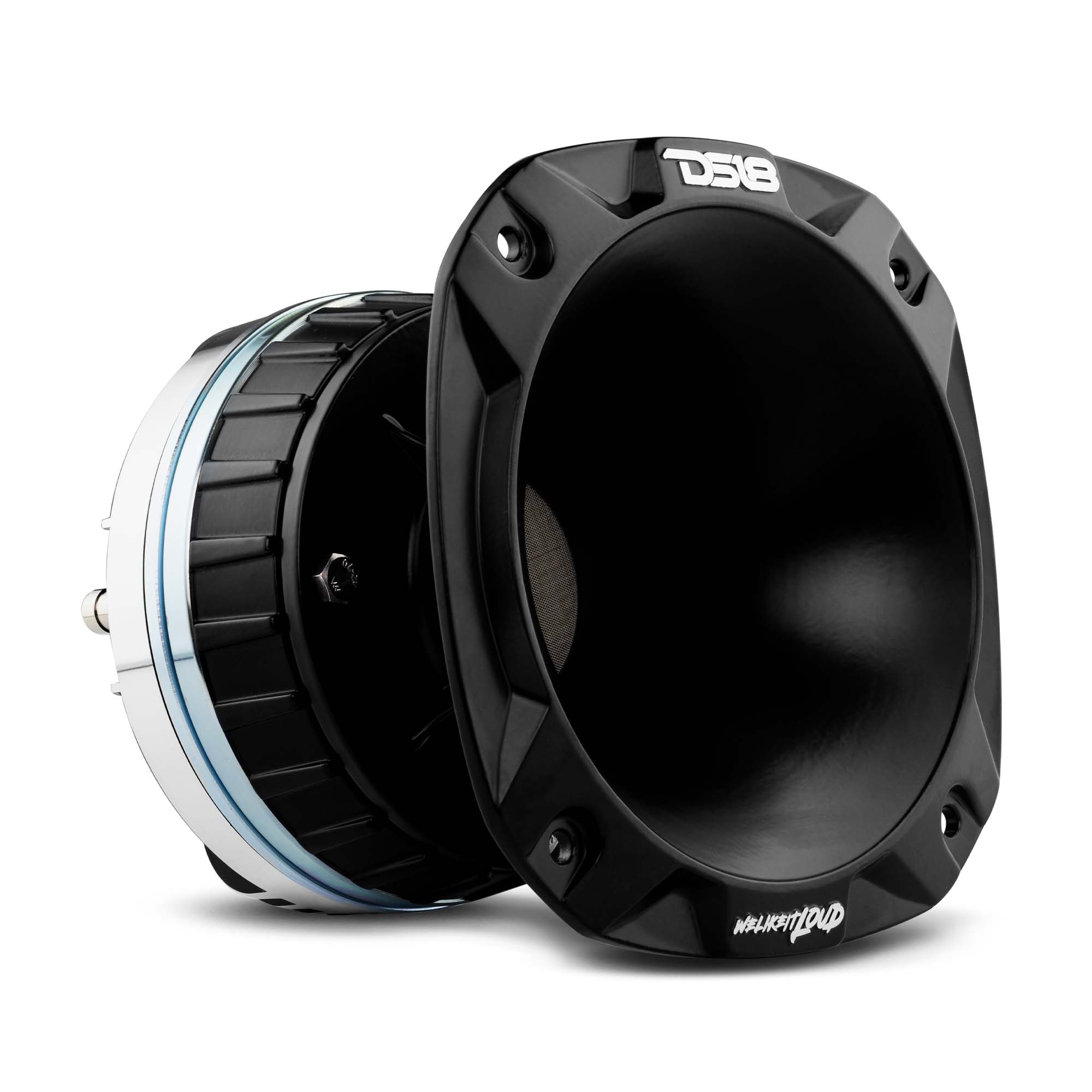

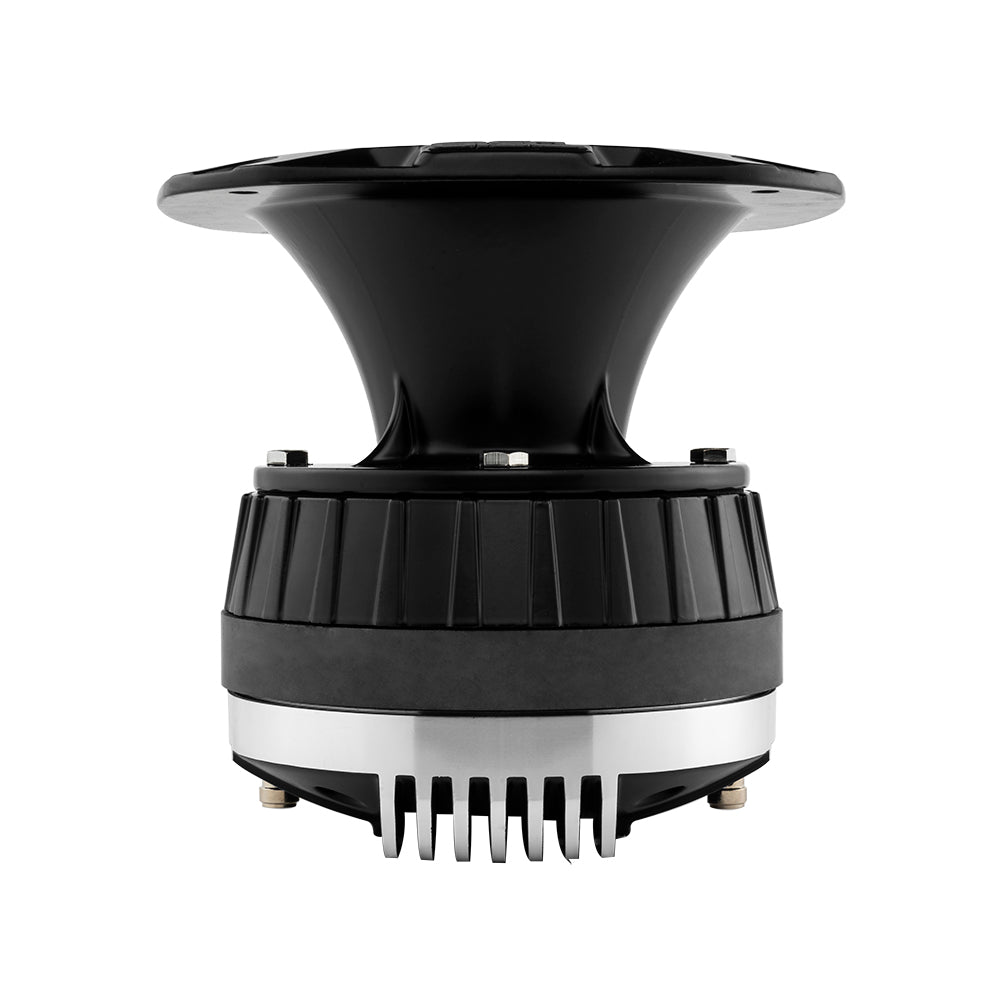

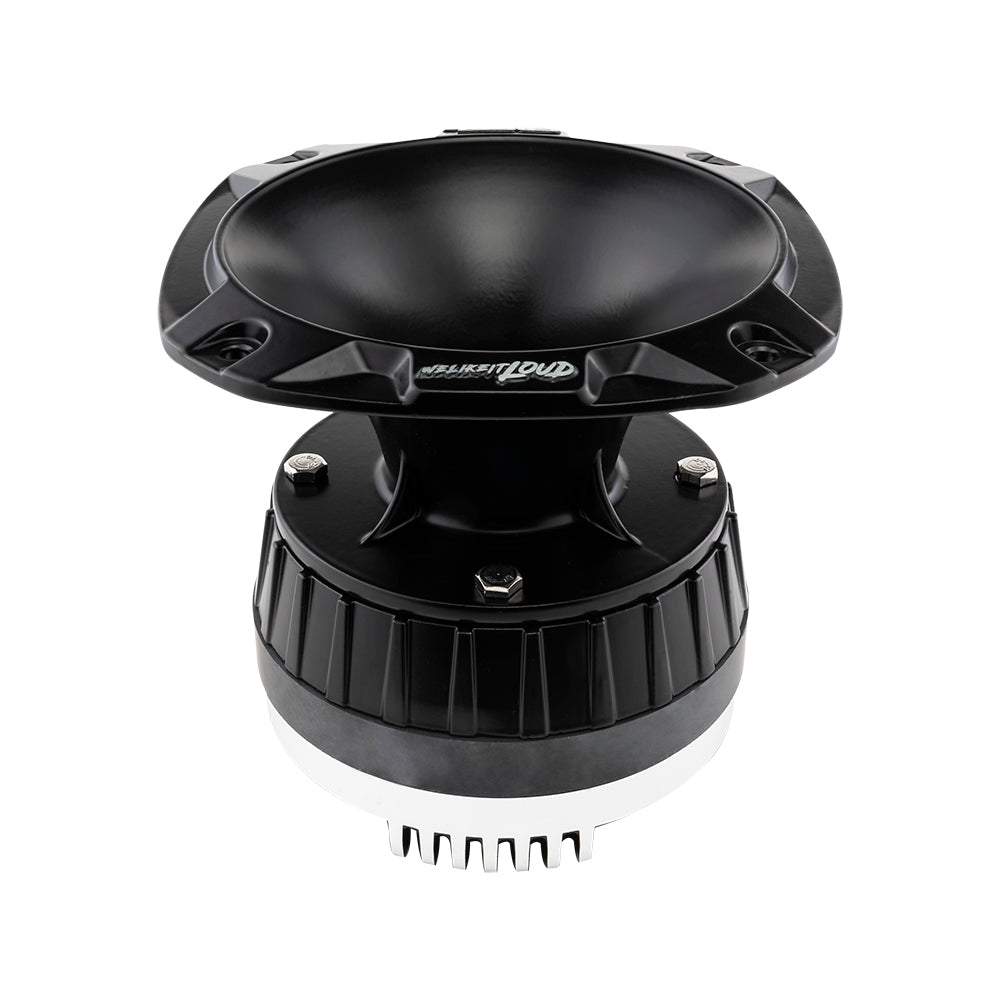

DS18 PRO-DKN1XS 2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat

The DKN1S includes the DS18 DKN1XS neodymium driver plus our newly redesigned shorty throat so you only need 5.2 inches mounting depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency and the included spacer amplifies the DB sensitivity. With an AES power handling of 170w and peak at 680w you will be sure to draw everyone's attention to your audio!

Highlights

  • DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
  • Aluminum "Shorty" throat with brushed DS18 logos for an amazing look and great fitment.
  • DKN1 Driver with an AES rating of 170 watts and Peak of 680w for super loud and vibrant highs with a Neodymium 8 ohms voice coil.
  • 5.2 inch mounting depth and 5.5 inches total mounting depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.

Technical Details
Throat Diameter 2"/50.8mm
Installation Type Bolt-on
Nominal Impedance 8 Ohms
Peak Power Handling 680W
Program Power Handling 340W
AES Power Handling 170W
Sensitivity (1w/1m) 118 dB
Frequency Response 630Hz - 18KHz
Recommended HI Pass Crossover 900 Hz
Motor:
Voice Coil Diameter 2"/51mm
Voice Coil Former Materia Kapton
Winding Materia CCA
Diaphragm Material Titanium
Magnet Material Neodymium
Magnet size 4 mm Thick x 134 mm Diameter
Measurements:
Overall Diameter 7"/180 mm
Overall Depth 5.5"/141.8 mm
Bolt Pattern/Type 5.5 mm hole - 6.3"/161 mm Diameter
Mounting Depth 5.2"/132.8mm
Mounting Hole Diameter 5.7"/145mm
